Pentair FNS Bulkhead 2 3/8 -8 butt 194801Z
Pentair
SKU: 194801Z

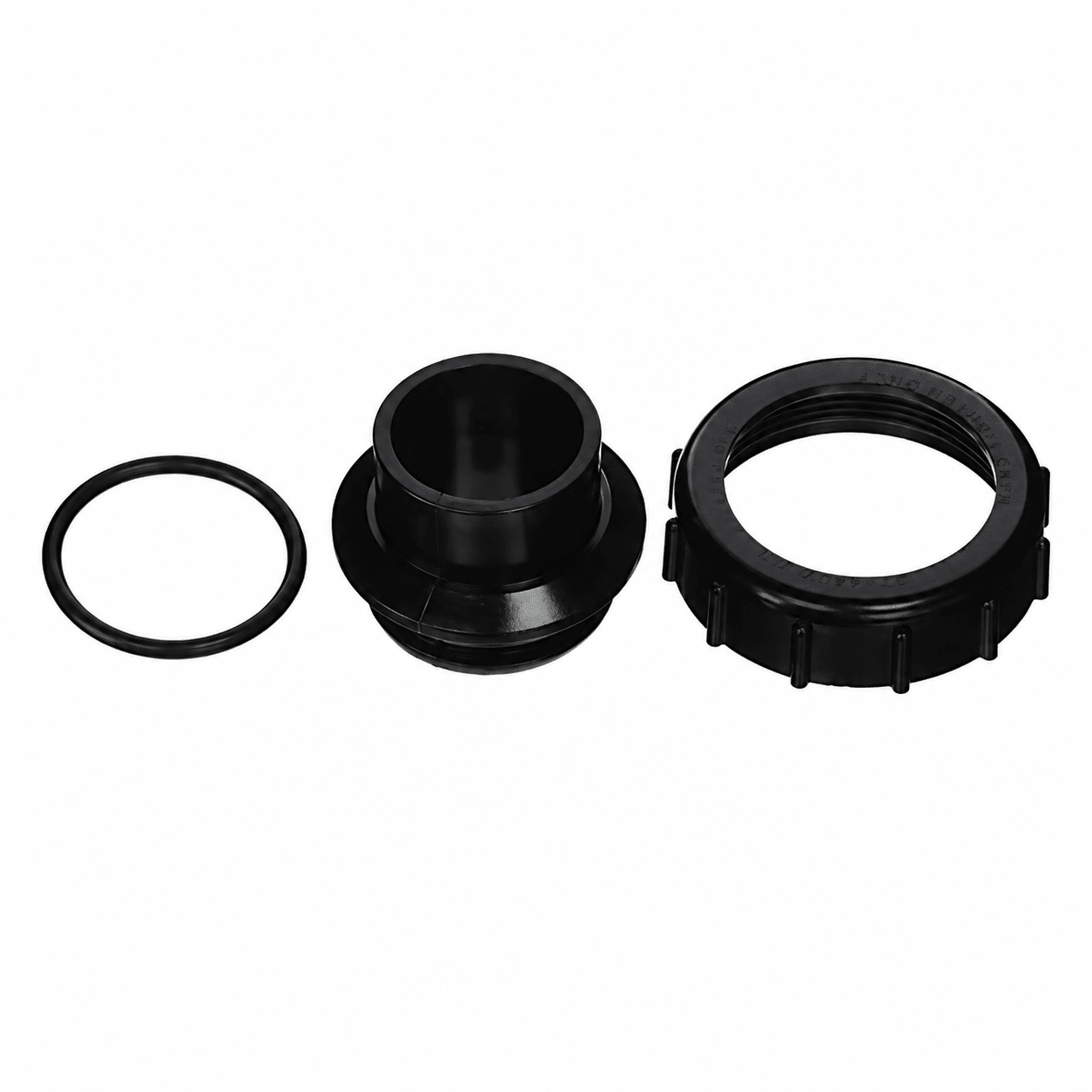

Pentair 194801Z 2" Upper Filter Bulkhead – 2-3/8"-8 Buttress Thread
The Pentair 194801Z is a genuine OEM replacement upper bulkhead fitting designed for compatible Pentair pool and spa filter tanks. Featuring a 2-inch plumbing connection and 2-3/8"-8 buttress threads, this fitting is used in select Clean & Clear Plus cartridge filters, Quad D.E. filters, and other compatible Pentair filter assemblies.
This replacement bulkhead provides the connection between the filter tank and associated plumbing or union components. It is designed to replace an original bulkhead that has become cracked, stripped, or damaged.
Product Features
- Genuine Pentair OEM replacement filter bulkhead
- Manufacturer part number: 194801Z
- Replaces earlier part number 194801
- 2-inch filter bulkhead fitting
- 2-3/8"-8 buttress thread design
- Designed for compatible Pentair upper bulkhead positions
- Durable molded plastic construction
- Replacement for cracked, damaged, or stripped filter bulkheads
- Sold individually
Product Details
| Brand | Pentair |
| Part Number | 194801Z |
| Previous Part Number | 194801 |
| Product Type | Filter Upper Bulkhead Fitting |
| Nominal Plumbing Size | 2" |
| Thread Specification | 2-3/8"-8 Buttress Thread |
| Material | Molded Plastic |
| Application | Pentair Pool Filter Bulkhead Connection |
| Quantity | 1 Bulkhead Fitting |
Compatibility
- Pentair Clean & Clear Plus Cartridge Filters manufactured after November 1998, where part 194801Z is specified
- Pentair Clean & Clear Plus CCP240, CCP320, CCP420, and CCP520 series with matching bulkhead assemblies
- Pentair Quad D.E. 60, 80, and 100 Filters
- Select Pentair FNS Plus D.E. Filter Models
- Select Pentair Nautilus and Nautilus Plus D.E. Filter Models
- Other Pentair/Pac-Fab filter tanks using original bulkhead part number 194801
Compatibility depends on filter model, production date, and bulkhead configuration. Verify the original part number and filter parts diagram before ordering.
Common Uses
- Replacing a cracked or broken upper filter bulkhead
- Repairing damaged filter plumbing connections
- Replacing stripped or worn buttress threads
- Servicing Pentair Clean & Clear Plus and Quad D.E. filter assemblies
- Restoring proper fit between a compatible filter tank and its plumbing connection
Installation Notes
- Turn off the pool pump and disconnect power before servicing the filter.
- Fully relieve filter pressure and drain water as required before removing the bulkhead.
- Confirm that the replacement fitting matches the original 2-3/8"-8 buttress thread configuration.
- Inspect the bulkhead sealing surfaces, O-rings, and mating components for damage.
- Replace damaged or deteriorated O-rings with the correct seals for the filter model.
- Install the fitting according to Pentair's filter service instructions.
- Do not force or overtighten the plastic bulkhead threads.
- After installation, restart the filtration system and check for leaks from a safe distance.
Related Products
- Pentair 192320 Upper Bulkhead O-Ring
- Pentair 86006900Z Bulkhead O-Ring
- Pentair 178575Z Clean & Clear Plus / Quad D.E. Lower Bulkhead
- Pentair 270004 Black Bulkhead Adapter Kit
- Pentair 98960311 Black Bulkhead Union Set
Maintenance Tips
- Inspect filter bulkhead connections periodically for leaks.
- Check bulkhead O-rings whenever fittings are removed for service.
- Keep threads and sealing surfaces clean before reassembly.
- Replace fittings showing cracks, deformation, or damaged threads.
- Never attempt to loosen a bulkhead fitting while the filter is pressurized.
