Pentair WhisperFloXF VS & Max-E-ProXF VS Commercial Pump Replacement Parts

Pentair

Pentair WhisperFloXF VS & Max-E-ProXF VS Commercial Pump Replacement Parts

Fits models:WhisperFloXF VSMax-E-ProXF VS

  • Genuine PentairOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros

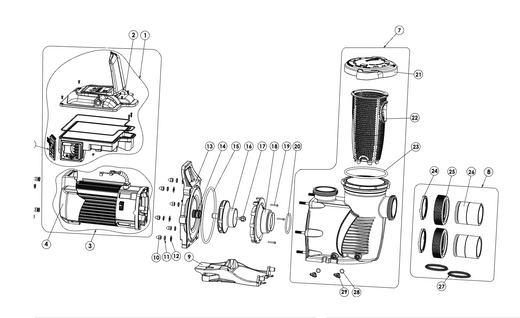

Exploded View

Tap a number to see the part, price and stock.

Pentair Pentair WhisperFloXF VS & Max-E-ProXF VS Commercial Pump Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (16)

WhisperFloXF VS Drive Kit (includes drive, top cover, keypad cover and field wir

Part # 358085 / 358086

Call for availability

WhisperFloXF VS Top Cover Kit with Screws

Part # 358093 / 358094

Call for availability

WhisperFloXF VS Motor with Fan Shroud

Part # 358089 / 358090

Call for availability

WhisperFloXF VS Fan Shroud with Screws

Part # 358095 / 358096

Call for availability

WhisperFloXF VS Field Wiring Cover with Screws

Part # 358091 / 358092

Call for availability

Union Kit

Part # 410020

$99.94$129.99In Stock

WhisperFloXF VS Motor Base

Part # 400004Z

Call for availability

Lock Washer (Qty. 10)

Part # U43-12SSZ

Call for availability

Mechanical Seal

Part # 17351-0101S

Call for availability

Diffuser

Part # 400011Z

$88.99$99.99In Stock

Diffuser Screws

Part # 353323Z

Call for availability

Strainer Basket

Part # 400007Z

$27.94$39.99In Stock

2.5 in, C-Clip Locking Ring (Qty. 2)

Part # 410001Z

Call for availability

2.5 in. Union Nut (Qty. 2)

Part # 411000

Call for availability

2.5 in. Union Adapter without Tap (Qty. 2)

Part # 410002Z

Call for availability

3-inch Flowmeter Kit

Part # 4203KIT

Call for availability

Seal Plate Hardware and O-Ring Kit*

Part # 400030Z

Call for availability

Riser Plate, XF to Challenger

Part # 400012

Call for availability

Pentair WhisperFloXF VS & Max-E-ProXF VS Commercial Pump parts, matched to the diagram. Click any number on the exploded view to see the part, price and stock. Leaking pump? It is usually the shaft seal or an o-ring. Losing prime? Start with the lid o-ring. Not sure what you have? Call us or bring the part into any of our Phoenix, Scottsdale, Chandler or Las Vegas stores and we'll match it.
