Pentair Max-E-ProXF Pump Replacement Parts

Pentair

Pentair Max-E-ProXF Pump Replacement Parts

Fits models:Max-E-ProXF

  • Genuine PentairOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros

Exploded View

Tap a number to see the part, price and stock.

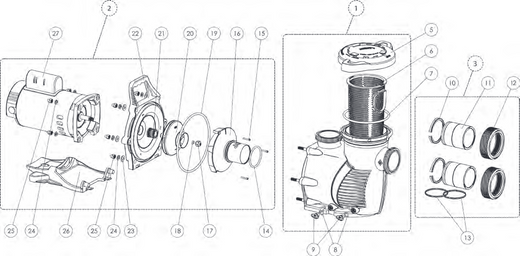

Pentair Pentair Max-E-ProXF Pump Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (10)

Wet End Assembly

Part # 401000

Call for availability

Lid/Locking Ring Assembly

Part # 401006

Call for availability

Lid/Locking Ring O-Ring

Part # 1440Z

Call for availability

Drain Plug

Part # 357161Z

$8.94In Stock

2.5 in. C-Clip Locking Ring

Part # 410001Z

Call for availability

2.5 in. Union Adapter without Tap

Part # 410002Z

Call for availability

2.5 in. Union Nut

Part # 411000

Call for availability

Diffuser Screw

Part # 353323Z

Call for availability

Impeller Screw, Metal-Head (pumps mfg. after 10/7/2019

Part # 356073

Call for availability

Mechanical Seal Assembly

Part # 0101S

Call for availability

Seal Plate

Part # 401002

Call for availability

Flat Washer

Part # 072184

$7.75$9.99In Stock

Split Lock Washer

Part # U43-12SSZ

Call for availability

Acorn Nut

Part # 071413

Call for availability

Hardware and O-Rings Kit

Part # 400030Z

Call for availability

Riser Plate XF to Challenger

Part # 400012

Call for availability

Motor End Cap and Screw

Part # 401014Z

Call for availability

Fan Guard Kit TEFC/Super-Duty

Part # 357924Z

Call for availability

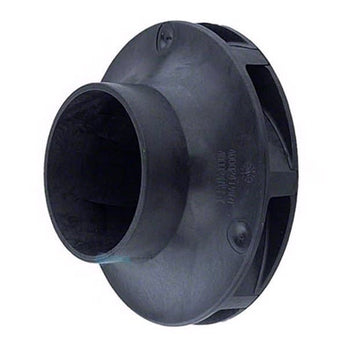

XFET-8

Part # 400023Z

$118.99$139.99In Stock

2hp 1-Phase TEFC 208-230V

Part # 354816S / 354818S / 354820S / 354810S / 354812S / 354814S

Call for availability

XFET-8

Part # 400011Z

$88.99$99.99In Stock

2hp 1-Phase TEFC 208-230V

Part # 401632Z / 401633Z / 401634Z / 401612Z / 401609Z / 401611Z / 401607Z / 401617Z / 401618Z / 401619Z

Call for availability

Pentair Max-E-ProXF Pump parts, matched to the diagram. Click any number on the exploded view to see the part, price and stock. Leaking pump? It is usually the shaft seal or an o-ring. Losing prime? Start with the lid o-ring. Not sure what you have? Call us or bring the part into any of our Phoenix, Scottsdale, Chandler or Las Vegas stores and we'll match it.
