Pentair IntelliProXF VSF & VS Pump (After August 2015) Replacement Parts

Pentair

Pentair IntelliProXF VSF & VS Pump (After August 2015) Replacement Parts

Fits models:IntelliProXF VSFIntelliProXF VS

  • Genuine PentairOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros

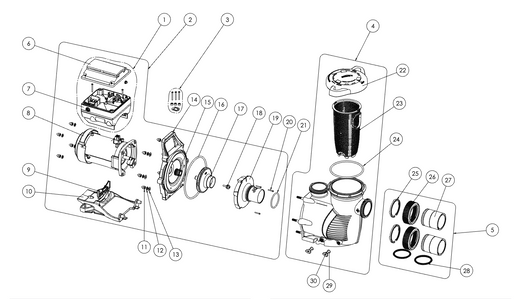

Exploded View

Tap a number to see the part, price and stock.

Pentair Pentair IntelliProXF VSF & VS Pump (After August 2015) Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (10)

Drive Kit (VSF model)

Part # 352032Z / 356893Z

Call for availability

Power End Kit (VS model)

Part # 401655Z

Call for availability

Wet End Assembly

Part # 401000

Call for availability

Keypad Assembly Kit

Part # 358527Z

Call for availability

Drive (VSF model)

Part # 356898Z / 356892Z

Call for availability

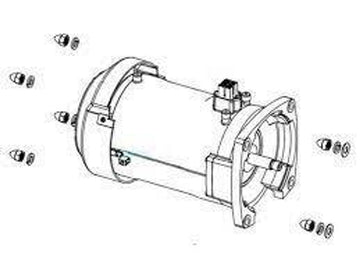

Motor

Part # 350306S

$598.99$799.99Out of stock

Lock Washer (Qty. 10)

Part # U43-12SSZ

Call for availability

Seal Plate

Part # 401002

Call for availability

Mechanical Seal

Part # 0101S

Call for availability

Impeller Assembly (includes screw and washer)

Part # 400015Z

Call for availability

Impeller Screw, Metal-Head (pumps mfg. after 10/7/2019

Part # 356073

Call for availability

Diffuser

Part # 400010Z

Call for availability

Diffuser Screws

Part # 353323Z

Call for availability

Lid/Locking Ring Assembly

Part # 401006

Call for availability

Strainer Basket

Part # 400007Z

$27.94$39.99In Stock

Lid/Locking Ring O-RIng

Part # 1440Z

Call for availability

2.5" C-Clip Locking Ring (Qty. 2)

Part # 410001Z

Call for availability

2.5" Union Nut (Qty. 2)

Part # 411000

Call for availability

2.5" Union Adapter without Tap (Qty. 2)

Part # 410002Z

Call for availability

Keypad Relocation Kit

Part # 356905Z

Call for availability

Impeller Screw Washer

Part # 072172

Call for availability

Pentair IntelliProXF VSF & VS Pump (After August 2015) parts, matched to the diagram. Click any number on the exploded view to see the part, price and stock. Leaking pump? It is usually the shaft seal or an o-ring. Losing prime? Start with the lid o-ring. Not sure what you have? Call us or bring the part into any of our Phoenix, Scottsdale, Chandler or Las Vegas stores and we'll match it.
