IntelliFloXF VS Replacement Parts (After August 2015)

Pentair

IntelliFloXF VS Replacement Parts (After August 2015)

Fits models:022055022005

  • Genuine PentairOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros
Shop the complete pump

Exploded View

Tap a number to see the part, price and stock.

Pentair IntelliFloXF VS Replacement Parts (After August 2015) exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (20)

Power End Kit (Motor & Drive)

Part # 400655Z

Call for availability

Hardware & Gasket Kit

Part # 355685

Call for availability

Motor 3.2kW

Part # 350305S

$729.94$999.99In Stock

Motor Base

Part # 400004Z

Call for availability

Acorn Nut #10

Part # 071413

Call for availability

Lock Washer #10

Part # U43-12SS

Call for availability

Flat Washer 3/8"

Part # 072184

Uses 4 per pump

$7.75$9.99In Stock

Seal Plate

Part # 400002Z

+1 more option

$149.94$179.99In Stock

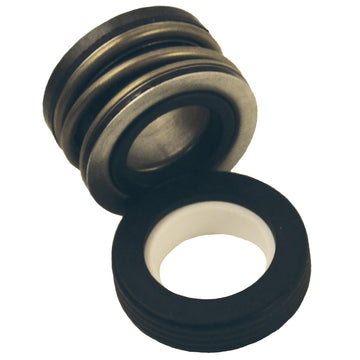

Shaft Seal

Part # 173510101S

$21.94$29.99In Stock

Impeller

Part # 400023Z

$118.99$139.99In Stock

Impeller Screw

Part # 37337-6080Z

$17.94$26.99In Stock

Diffuser

Part # 400010Z

Call for availability

Diffuser Screws

Part # 353323

Call for availability

Strainer Basket

Part # 400007Z

$27.94$39.99In Stock

Lid O-Ring

Part # 35505-1440Z

$18.89$29.99In Stock

Union C-Clip Locking Ring

Part # 410001

Call for availability

Union Nut 2.5"

Part # 411000

Call for availability

Union Adapter 2.5" (without tap)

Part # 410002

Call for availability

Union O-Ring

Part # 410016Z

Uses 2 per pump

$14.48$19.99In Stock

Drain Plug O-Ring

Part # 192115Z

Uses 2 per pump

$6.94$7.99In Stock

Drain Plug

Part # 071131Z

Uses 2 per pump

$9.94$14.99In Stock

Pentair IntelliFloXF VS parts, matched to the diagram. Click any number on the exploded view to see the part, price and stock. These parts fit IntelliFloXF VS pumps built after August 2015 (models 022055 and 022005). Leaking? Start with the shaft seal (#15) and the seal plate o-ring (#16). Losing prime? Check the lid o-ring (#24) first. Not sure what you have? Call us or bring the part into any of our Phoenix, Scottsdale, Chandler or Las Vegas stores and we'll match it.
