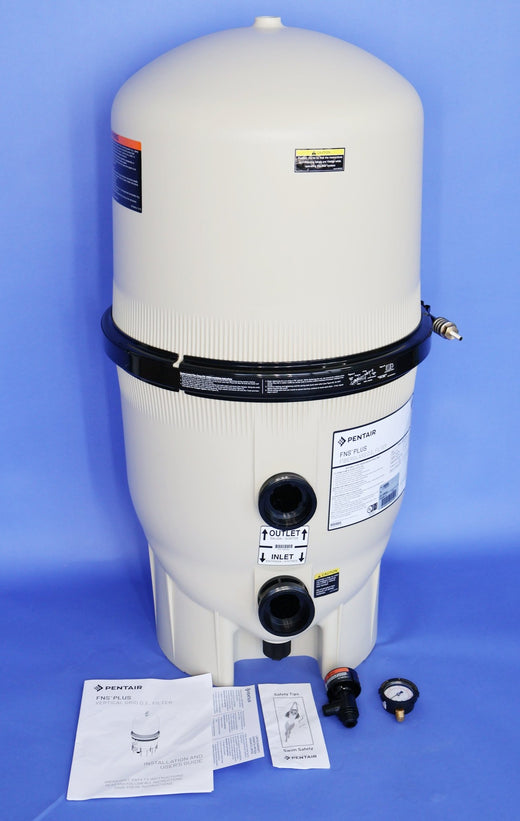

FNS Plus 48 D.E. Filter Replacement Parts

Pentair

FNS Plus 48 D.E. Filter Replacement Parts

Fits models:180008EC-180008

  • Genuine PentairOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros
Shop the complete filter

Exploded View

Tap a number to see the part, price and stock.

Pentair FNS Plus 48 D.E. Filter Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (18)

Pressure Gauge

Part # 190058Z

$12.48$19.99In Stock

Wing Nut Kit

Part # 071404Z

Call for availability

Tie Rod (48 sq ft)

Part # 59002100Z

Call for availability

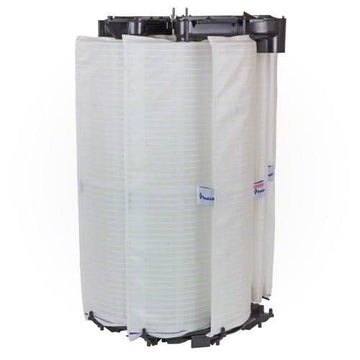

Grid Assembly, Full (48 sq ft)

Part # 59002400

Call for availability

Grid Assembly, Partial (48 sq ft)

Part # 59002300Z

Call for availability

Brass Nut 1/4-20

Part # 98211400Z

Call for availability

Bottom Spider Assembly

Part # 59000500

Call for availability

Nylon Lock Nut

Part # 58001000

Call for availability

Tank O-Ring

Part # 39010200Z

$47.99$62.99In Stock

Clamp Washer

Part # 195610

+1 more option

$9.94$12.99Out of stock

Standpipe Assembly (48 sq ft)

Part # 190036

Call for availability

Valve Adapter Kit 2"

Part # 271096

+1 more option

$49.99$69.99In Stock

Inlet Pipe Assembly with Bulkhead

Part # 190043

Call for availability

Drain Cap O-Ring

Part # 191474Z

Call for availability

Drain Cap

Part # 86202000

$18.75$24.99In Stock

Standpipe O-Ring

Part # 59000600Z

Call for availability

Backup Ring 19"

Part # 195339

$69.94$79.99In Stock

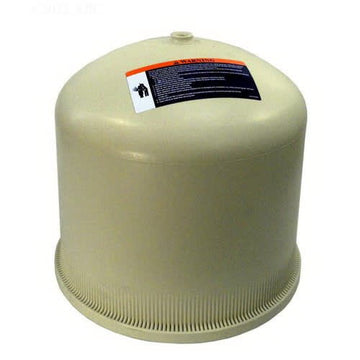

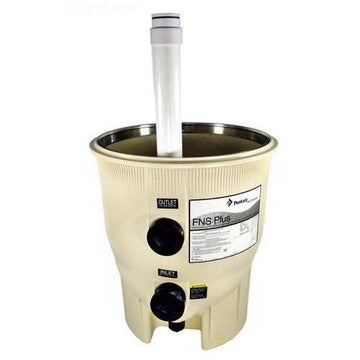

Pentair FNS Plus 48 D.E. filter parts, matched to the diagram. Click any number on the exploded view to see the part, price and stock. The grids (#9, #10), element (#11), tie rods (#5), standpipe (#19), lid (#26) and tank bottom (#25) are size-specific, and these fit the 48 sq ft filter. Leaking at the seam? Replace the tank o-ring (#15). Not sure what you have? Call us or bring the part into any of our Phoenix, Scottsdale, Chandler or Las Vegas stores and we'll match it.
