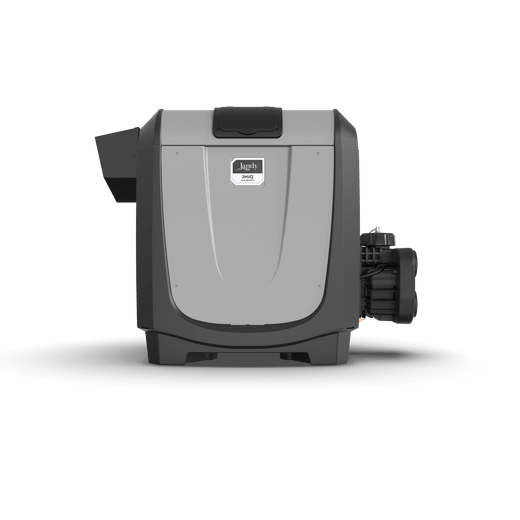

Jandy JXiQ Heater Replacement Parts

Jandy

Jandy JXiQ Heater Replacement Parts

Fits models:JXIQ200NKJXIQ200PKJXIQ260NKJXIQ260PKJXIQ400NKJXIQ400PK

  • Genuine JandyOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros
Owner's Manual (PDF) Shop the complete heater

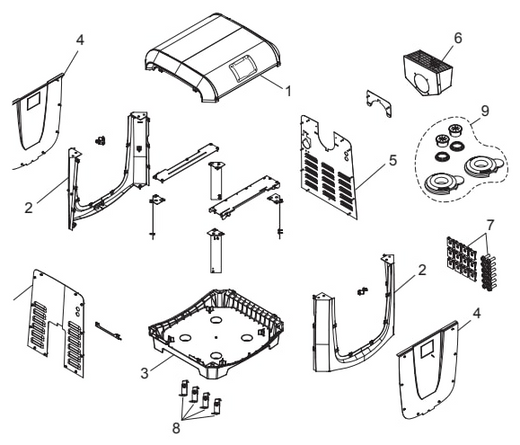

Exploded View

Tap a number to see the part, price and stock.

Jandy Jandy JXiQ Heater Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (14)

Heater Jacket Top Kit (No User Interface)

Part # R0592400

Call for availability

Corner Post Kit, Left/Right (Set of 2)

Part # R0592500

Call for availability

Heater Base Kit

Part # R0592600

Call for availability

Front or Back Panel Kit

Part # R0592702

Call for availability

Side Panel Kit

Part # R0592902

Call for availability

Vent Terminal Housing Kit

Part # R0593100

Call for availability

Jacket Hardware Kit

Part # R0593300

Call for availability

Anchor Brackets Kit (Set of 4)

Part # R0593400

Call for availability

Jacket Hole Plug Kit

Part # R0591800

Call for availability

Complete Replacement Box Packaging Kit

Part # R0593603

Call for availability

Exhaust Elbow Assembly Kit

Part # R0590200

Call for availability

Band Clamp Kit

Part # R0590400

Call for availability

Refractory Kit, Internal

Part # R0590500

Call for availability

Combustion Chamber Shelf (Set of 2), 200 and 260

Part # R0590700

Call for availability

Combustion Chamber Lid Kit

Part # R0590800

Call for availability

Gasket Kit

Call for availability

Sight Glass Kit

Part # R0305400

Call for availability

Igniter Kit

Part # R0457502

$46.99$69.99In Stock

Insulation Kit, External

Part # R0591000

Call for availability

Isolator Kit (Thermal)

Part # R0593200

Call for availability

Heat Exchanger Assembly

Call for availability

Combustion Chamber Assembly (Includes Header)

Part # R0988203 / R0988205

Call for availability

Air Intake Grate Kit

Part # R0591200

Call for availability

Blower Intake Orifice Kit

Part # R0591302 / R0591312 / R0591303 / R0591313 / R0591305 / R0591315

Call for availability

Fuel Orifice Kit

Part # R0591601 / R0591605 / R0591602 / R0591606 / R0591604 / R0591608

Call for availability

Burner Kit

Part # R0591702 / R0591703 / R0591705

Call for availability

Capacitor Kit

Part # R0614500

Call for availability

Gas Pressure Switch

Part # R0989100

Call for availability

Gas Pressure Switch Assembly

Part # R0988500

Call for availability

Access Door Kit (with O-Ring Seal and Screws)

Part # R0589600

Call for availability

Bypass Kit

Part # R0589800

$30.00$64.99In Stock

Drain Plug / Outlet Temperature Sensor Kit

Part # R0988600

Call for availability

Manifold Backplate Kit

Part # R0590002 / R0590003 / R0590005

Call for availability

Water Pressure Switch Kit

Part # R0457001

Call for availability

Goody Bag Kit

Part # R0593502

Call for availability

Flow Plate Assembly

Part # R0725201 / R0725202 / R0725203

Call for availability

Sacrificial Anode

Part # R0965100

Call for availability

Transformer Kit

Part # R0456300

$117.99$149.99In Stock

User Interface Kit

Part # R0988800

Call for availability

User Interface Lid Kit

Part # R0989200

Call for availability

Wiring Harness Kit

Part # R0988900

Call for availability

Air Pressure Switch Kit

Part # R0456400

Call for availability

Flue Temperature Sensor

Call for availability

Ignition Control Board

Part # R0988700

Call for availability

Inlet Water Temperature Sensor Kit

Part # R0456502

Call for availability

Igniter Kit

Part # R0457502

$46.99$69.99In Stock

Power Interface Harness

Part # R0985500

Call for availability

User Interface Wiring Harness

Part # R0989000

Call for availability

Fuse, Ignition Control Board

Part # R1009500

Call for availability

Interactive exploded-view parts diagrams for the Jandy JXiQ gas pool and spa heater (JXIQ200, JXIQ260 and JXIQ400, natural gas and propane, 2023 to present). Five views cover the jacket, heat exchanger and combustion chamber, blower and gas train, water manifold, and electrical controls. Click any numbered part to see the part number, price and stock, or call us and we will find it for you.
