Hayward ProSeries S360SX Replacement Parts

Fits models:S360SX

  • Genuine HaywardOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros
Owner's Manual (PDF)

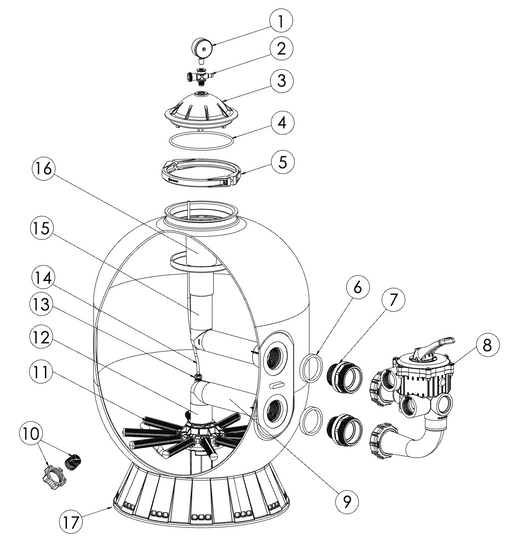

Exploded View

Tap a number to see the part, price and stock.

Hayward Hayward ProSeries S360SX Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (6)

Pressure Gauge

Part # ECX270861

$23.94$36.99In Stock

Flange Clamp

Part # SX310N

Call for availability

Bulkhead Fitting w/ Seal (2 req.)

Part # SX244PX

Call for availability

Square Seal (2 req.)

Part # SX244Z1

Call for availability

Bottom Elbow Assembly (S360SX)

Part # SX360CDFWS

Call for availability

Ribbed Laterals (pack of 10)

Part # SX310HNRPAK10

Call for availability

Lateral Holder Assembly w/ Bottom Vertical Pipe (S360SX)

Part # SX242MA3S

Call for availability

Air Tube Locknut

Part # X1010574

Call for availability

Air Tube w/ Locknut (S360SX)

Part # SX360AT

Call for availability

Top Elbow Assembly w/ Diffuser (S360SX)

Part # SX360CD1FWS

Call for availability

Diffuser Assembly (new style)

Part # SX244GS

Call for availability

Filter Stand

Part # SX310J

Call for availability

Hayward ProSeries S360SX side-mount sand filter parts, matched to the diagram. Click any number on the exploded view to see the part, price and stock. The bottom elbow (#9), lateral holder (#12), air tube (#14) and top elbow (#15) are size-specific, and these fit the S360SX. Sand in the pool? Check the laterals (#11). Not sure what you have? Call us or bring the part into any of our stores and we'll match it.
