Hayward ProSeries S244S Replacement Parts

Hayward

Hayward ProSeries S244S Replacement Parts

Fits models:S244SS244SV

  • Genuine HaywardOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros
Owner's Manual (PDF)

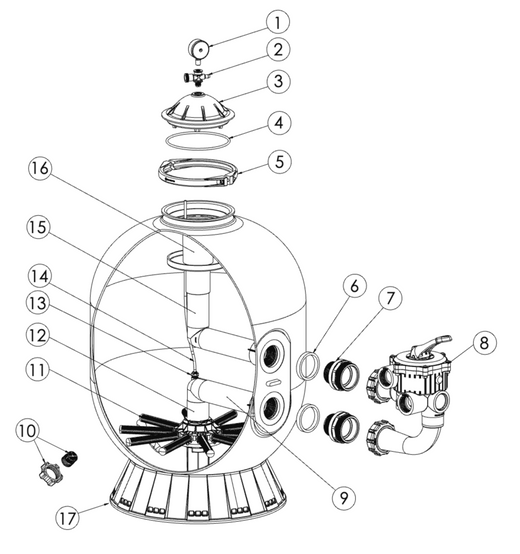

Exploded View

Tap a number to see the part, price and stock.

Hayward Hayward ProSeries S244S Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (8)

Pressure Gauge

Part # ECX270861

$23.94$36.99In Stock

Bulkhead Fitting w/ Seal (2 req.)

Part # SX244PX

Call for availability

Square Seal (2 req.)

Part # SX244Z1

Call for availability

VariFlo Control Valve

Part # SP0710X62

+1 more option

$170.99$199.99In Stock

Bottom Elbow Assembly w/ Air Tube (S244S)

Part # SX244CD2FWS

Call for availability

Ribbed Laterals, 24" (pack of 10)

Part # SX240DNRPAK10

Call for availability

Lateral Holder Assembly w/ Bottom Vertical Pipe (S244S)

Part # SX242MA1S

Call for availability

Air Tube Locknut

Part # X1010574

Call for availability

Air Tube w/ Locknut (S244S)

Part # SX244AT

Call for availability

Top Elbow Assembly w/ Diffuser (S244S)

Part # SX244CD1FWS

Call for availability

Diffuser Assembly (new style)

Part # SX244GS

Call for availability

Lateral Holder + Bottom Pipe + Bottom Elbow Kit (#9 + #12)

Part # SX244MA1S

Call for availability

Hayward ProSeries S244S / S244SV 24" side-mount sand filter parts, matched to the diagram. Click any number on the exploded view to see the part, price and stock. The flange clamp (#5), bottom elbow (#9), laterals (#11), lateral holder (#12), air tube (#14), top elbow (#15) and stand (#17) are size-specific, and these fit the S244S. Sand in the pool? Check the laterals (#11). Not sure what you have? Call us or bring the part into any of our stores and we'll match it.
