Hayward MaxFlo VS Pump Replacement Parts

Hayward

Hayward MaxFlo VS Pump Replacement Parts

Fits models:SP23520VSPX1W3SP2303VSPX1SPX2303Z1VSPE (Power End)

  • Genuine HaywardOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros
Owner's Manual (PDF) Shop the complete pump

Exploded View

Tap a number to see the part, price and stock.

Hayward Hayward MaxFlo VS Pump Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (10)

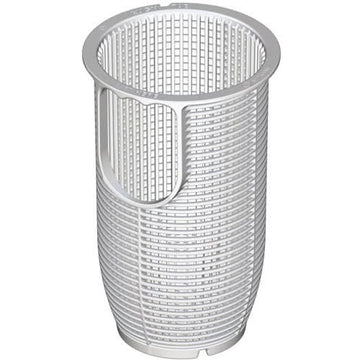

Strainer Basket

Part # SPX2300M

$17.94$24.99In Stock

Diffuser Screws (5 Pack)

Part # SPX3200Z8

Call for availability

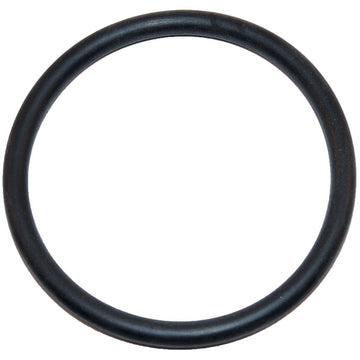

Diffuser O-Ring

Part # SX220Z2

$10.94$14.99In Stock

Diffuser

Part # SPX2300B

Call for availability

Impeller

Part # SPX2710CM

Call for availability

Shaft Seal Assembly (Viton)

Part # SPX2700SAV

Call for availability

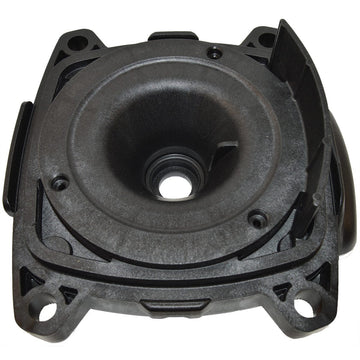

Seal Plate

Part # SPX2300E

$47.75$59.99In Stock

Motor Bolt (4 Pack)

Part # SPX3200Z5PAK4

Call for availability

Motor Support Base Mount Screws

Part # SPX1600Z52

Call for availability

Display Terminal Assembly

Part # VSXDISPLAYX1

Call for availability

Optional Riser Base Aligns with Sta-Rite Dyna-Pro Pump*

Part # SPX2300GR

Call for availability

Power End Assembly (Includes #7-14, Motor and Drive)

Part # SPX2303Z1VSPE

Call for availability

Communication Cable Kit

Part # SPX3200DRCC

Call for availability

Interactive exploded-view parts diagram for the Hayward MaxFlo VS Pump. Click any numbered part to see the part number, price and stock, or call us and we will find it for you.
