Hayward H-Series 135K BTU Heater Replacement Parts

Hayward

Hayward H-Series 135K BTU Heater Replacement Parts

Fits models:H-Series 135K

  • Genuine HaywardOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros

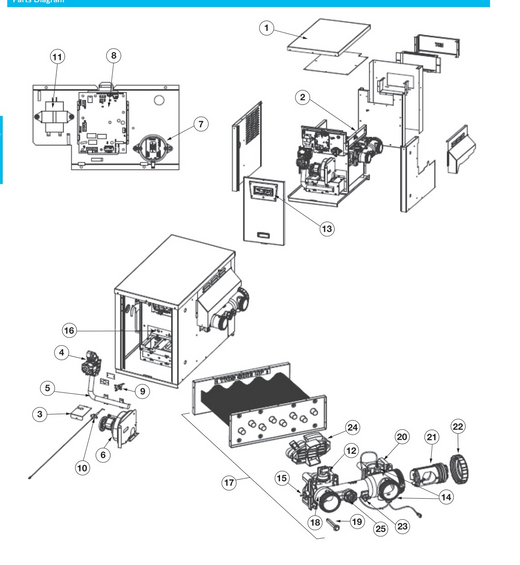

Exploded View

Tap a number to see the part, price and stock.

Hayward Hayward H-Series 135K BTU Heater Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (17)

Jacket Top

Part # IDXLJKT1135

Call for availability

Flue Collector Side Panel with Temperature Limit

Part # FDXLFCS1931

Call for availability

Igniter Access Cover

Part # FDXLIAC1930

Call for availability

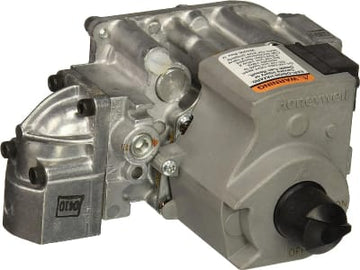

Gas Valve

Part # FDXLGSV0001

+1 more option

$319.99$399.99Out of stock

Gas Conversion Kit - 135K

Part # FDXLGCKW135NP / FDXLGCKW135PN

Call for availability

Combustion Blower

Part # FDXLBWR1930

$246.94$299.99In Stock

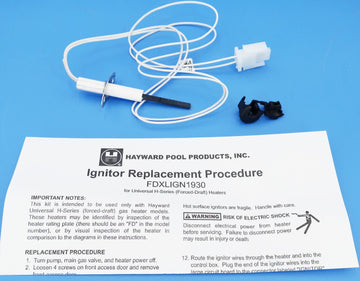

Ignitor

Part # FDXLIGN1930

$78.15$119.99In Stock

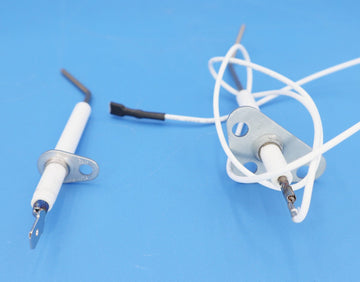

Flame Sensor

Part # IDXLFLS1930

$62.99$79.99In Stock

Transformer

Part # IDXLTRF1135

Call for availability

Water Pressure Switch

Part # FDXLWPS1931

Call for availability

Bezel and Keypad Assembly

Part # IDXLBKP1135

Call for availability

High Limit Kit

Part # FDXLHLI1930

$58.75$69.99In Stock

Gasket, CC Front/Air Box

Part # FDXLGSK1934

Call for availability

Header Hardware Kit

Part # FDXLHDW1930

Call for availability

Header Mounting Base Kit

Part # FDXLHMB1930

Call for availability

Header Cartridge Retaining Nut

Part # FDXLCRN1930

Call for availability

3/4" Brass Plug

Part # CHXPLG1930

Call for availability

Burner (Qty. 8)

Part # FDXLBRN1930

Call for availability

Burner (Qty. 1)

Part # FDXLBRN1931

Call for availability

Insulation, Return Side Tube Sheet

Part # FDXLGSK1933

Call for availability

Wiring Harness Kit, Complete

Part # IDXLWHA1135

Call for availability

Gasket Kit - 135K Heaters

Part # IDXLGSK1135

Call for availability

Interactive exploded-view parts diagram for Hayward H-Series 135K BTU heaters. Click any numbered part to see the part number, price and stock. Common replacements include the igniter, flame sensor, control board, gas valve, combustion blower, water pressure switch and headers. Not sure which part you need? Call us or bring the old part into any of our stores and we'll match it.
