Hayward Union Elbow | SPX1485B
Hayward Products
SKU: SPX1485B

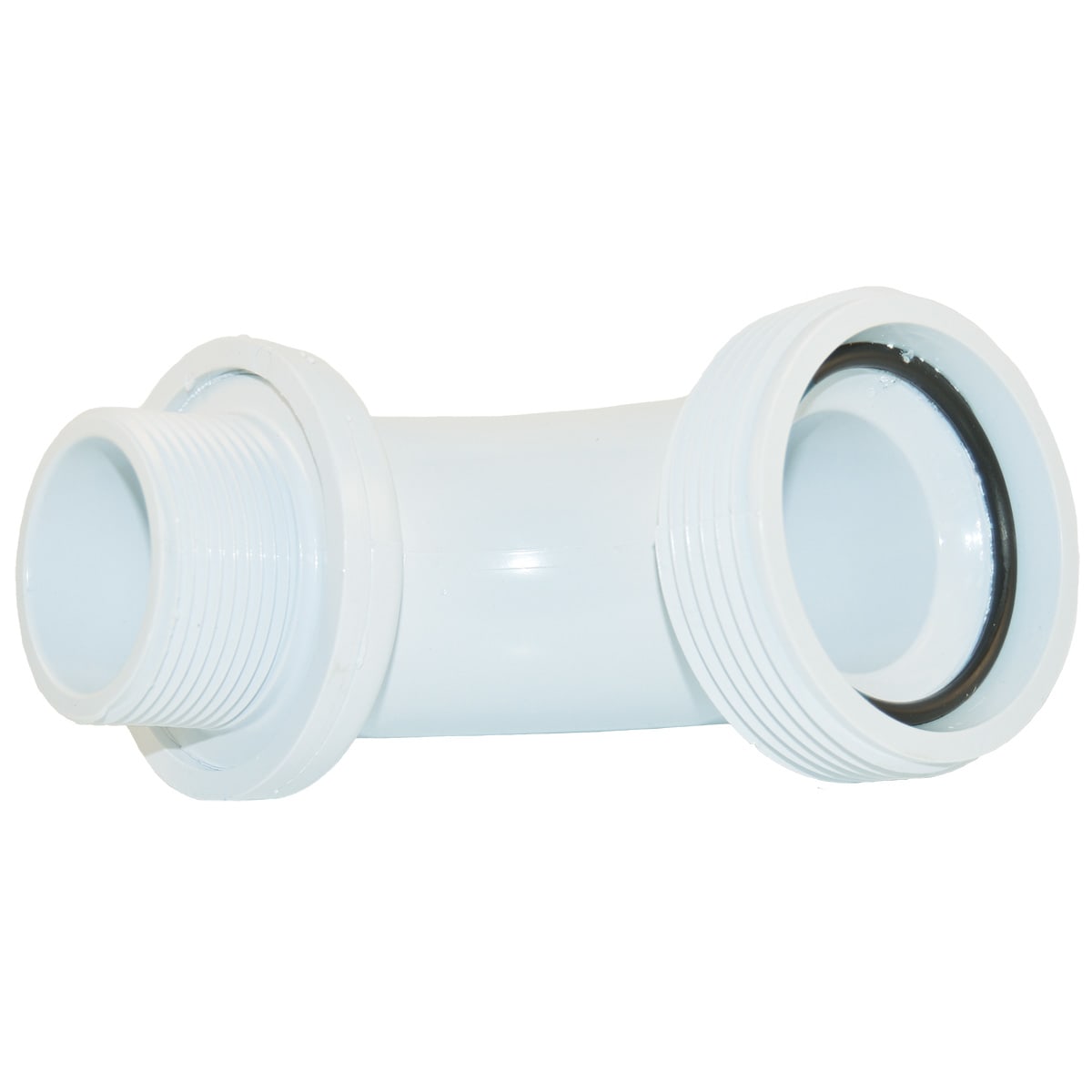

Hayward SPX1485B Pump Discharge Union Elbow (Perflex EC-Series)
Hayward SPX1485B is a genuine replacement pump discharge union elbow used on select Hayward Perflex extended-cycle D.E. filter systems. This 90° elbow helps route water flow from the filter/pump discharge connection while providing a union-style connection for easier service and disassembly.
Key Features
- Part Number: SPX1485B
- Brand: Hayward
- Type: Pump discharge elbow / union elbow (90° fitting)
- Function: Routes discharge flow and provides a service-friendly union connection
- Common catalog reference: 4820-65 (often listed)
- Genuine Hayward replacement part for proper fit
Common Compatibility (Verify by Your Model/Diagram)
- Hayward Perflex Extended-Cycle D.E. filters: EC65, EC65A, EC75, EC75A
- Also commonly referenced as compatible with Hayward union model SP1485
Important Notes
- This part is commonly sold as the elbow only. If you also need the sealing O-ring, check your system’s parts list and consider the elbow-with-O-ring version (often listed as SPX1485B6) or replace the union O-ring separately if applicable.
- Always confirm the elbow style and sealing surfaces match your existing union before ordering.
Common Reasons to Replace
- Dripping or seepage at the discharge elbow/union connection
- Cracked elbow body from stress, impact, or freeze damage
- Worn sealing surface that won’t seal consistently (even after replacing the O-ring)
- Damaged connection points that prevent proper alignment
Installation Notes
- Shut off the pump and relieve system pressure before loosening any unions.
- Clean the union sealing surfaces before reassembly.
- If an O-ring is used at the union, inspect it and replace if flattened, cracked, or swollen.
- Use a light coat of pool-safe silicone lubricant on O-rings only (do not use petroleum-based products).
- Hand-tighten union nuts snugly; avoid overtightening plastic fittings.
Related Products
- Hayward SPX1485B
- Hayward SPX1485B6 Elbow Union with O-Ring
- Hayward Perflex EC65 Parts
- Hayward Perflex EC75 Parts
- Pool Union O-Rings
- Pool-Safe Silicone O-Ring Lubricant
Maintenance Tips
- Support nearby plumbing to reduce stress on elbows and unions.
- Recheck for seepage after the system reaches normal operating pressure.
- Replace union O-rings whenever they feel stiff, look flattened, or leak after reassembly.
- Winterize properly and drain equipment to reduce freeze-related cracking of fittings.
