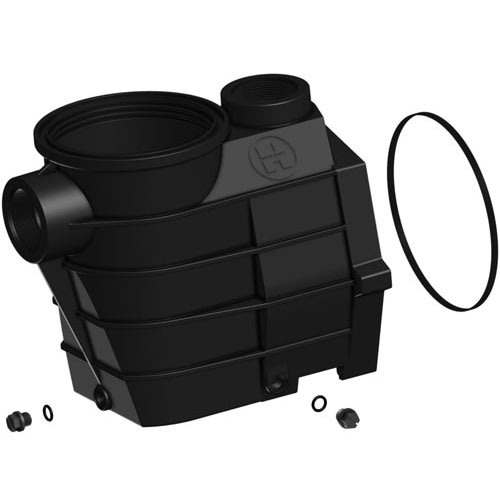

Hayward SPX3120AAZ – 2" x 2" Threaded Pump Housing/Strainer Assembly (Super II® Series)
Product Overview
The Hayward SPX3120AAZ is a genuine OEM replacement housing and strainer assembly for Hayward Super II® pool pumps. This assembly features 2" female-threaded inlet and outlet ports, built-in drain plugs, and a heavy-duty thermoplastic body designed for superior strength and chemical resistance. It restores proper performance and sealing when replacing a cracked or leaking pump housing.
Key Features
- 2" FPT (female threaded) suction and discharge ports for direct threaded plumbing installation
- Durable, corrosion-resistant thermoplastic construction
- Integrated drain plugs for easy winterizing or maintenance
- Threaded lid style housing for compatible Super II® pump lids
- OEM Hayward part ensures exact fit and reliable sealing performance
Technical Specifications
- Part Number: SPX3120AAZ
- Material: Reinforced thermoplastic
- Port Size: 2" suction and 2" discharge (FPT threaded)
- Includes: Housing/strainer body with two drain plugs (basket, lid, and O-ring sold separately)
- Weight: Approximately 7 lbs
Compatible Pump Models
- Super II® SP3000 Series: SP3007EEAZ, SP3010EEAZ, SP3015EEAZ, SP3020EEAZ, SP3025EEAZ, SP3030EEAZ
- Super II® SP3000X Series: SP3005X7AZ, SP3007X10AZ, SP3010X15AZ, SP3015X20AZ, SP3020X25AZ, SP3025X30AZ
Note: This housing is designed for pumps using the threaded lid style. Pumps with knob-style lids require a different housing version.
Installation Instructions
- Turn off power and relieve pressure in the system before servicing.
- Remove the old housing and clean the sealing surfaces thoroughly.
- Install the new housing, ensuring all bolts are tightened evenly in a cross pattern.
- Use thread sealant or Teflon tape on pipe connections to ensure a watertight seal.
- Prime the pump and check for leaks once the system is reassembled.
Troubleshooting Tips
- Leak at housing seam: Check that the housing gasket is seated properly and bolts are evenly torqued.
- Air bubbles in pump basket: Verify that the suction side fittings are sealed and not drawing air.
- Cracks or leaks around ports: Ensure plumbing is aligned properly and not putting stress on the housing.
Why Choose Genuine Hayward Parts?
OEM Hayward components are built to exact factory specifications, ensuring proper fit, performance, and durability. The SPX3120AAZ maintains optimal hydraulic flow and prevents leaks that could lead to reduced efficiency or equipment damage.
Maintenance Tip
Inspect the housing and drain plugs each season for wear or damage. During winterization, remove the drain plugs to prevent freeze damage. Re-lubricate O-rings and gaskets annually to maintain a tight seal and extend the life of the pump assembly.
