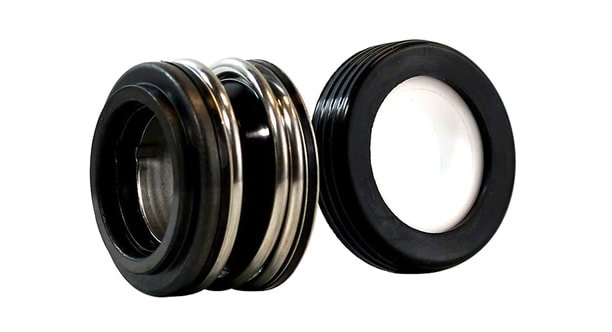

Hayward Seal Assembly | SPX1600Z2 - Pump Parts - img - 1

Not sure it fits? See this part on the interactive diagram Hayward Super Pump

In stock, ready to ship
Inventory on the way

$24.99 Price

Instant Savings: $8

Questions about returns? View our return policy.

Quantity

Hayward SPX1600Z2 Seal Assembly

The Hayward SPX1600Z2 Seal Assembly is a precision replacement shaft seal kit designed for use in select Hayward Super Pump, Max-Flo and Super II pump models. It restores the critical sealing interface between the motor shaft and wet end housing to prevent leaks and extend pump life.

Key Features

OEM replacement kit tailored for Hayward pump wet ends.
Includes ceramic/mica seal faces, spring-loaded drive component and elastomer boot.
Designed for durability in pool water conditions and chemical environments.
Helps prevent water intrusion into the motor bearing area, supporting long service life.

Technical Specifications

Part Number: SPX1600Z2
Application: Shaft seal assembly for select Hayward in-ground pump models.
Compatible Pumps Include: Super Pump SP1600X series, Max-Flo SP1800X/SP2800X series, Super II SP3000 series and others.
Includes: Seal assembly, elastomer boot, mounting hardware (as required).

Installation & Compatibility Notes

Before installing, shut off the pump, isolate power and relieve all system pressure. Remove the old seal and clean the motor shaft, bearing housing area and diffuser bore. Install the new SPX1600Z2 assembly exactly as specified, ensuring the sealing faces are clean and the elastomer is seated properly. Reassemble the pump, restore power and monitor for leaks and normal hydraulic performance.

Maintenance Tips

Whenever the pump motor or wet end is removed, always install a new shaft seal to prevent future leakage.
Inspect for signs of water intrusion, motor overheating or vibration—if present, the seal may be compromised.
Clean the diffuser and impeller periodically to maintain optimal flow and reduce stress on the seal assembly.
Stock this seal kit in your parts inventory to reduce downtime on service calls involving common pump models.

Why Choose This Seal Assembly?

For pool service professionals and homeowners alike, the Hayward SPX1600Z2 offers a reliable, factory-matched sealing solution for major Hayward pump models. Installing the correct seal helps avoid costly motor damage, restores hydraulic integrity and keeps the pump running smoothly season after season.
