Hayward Key/Seal Assembly | SPX0714CA
Hayward Products
SKU: SPX0714CA

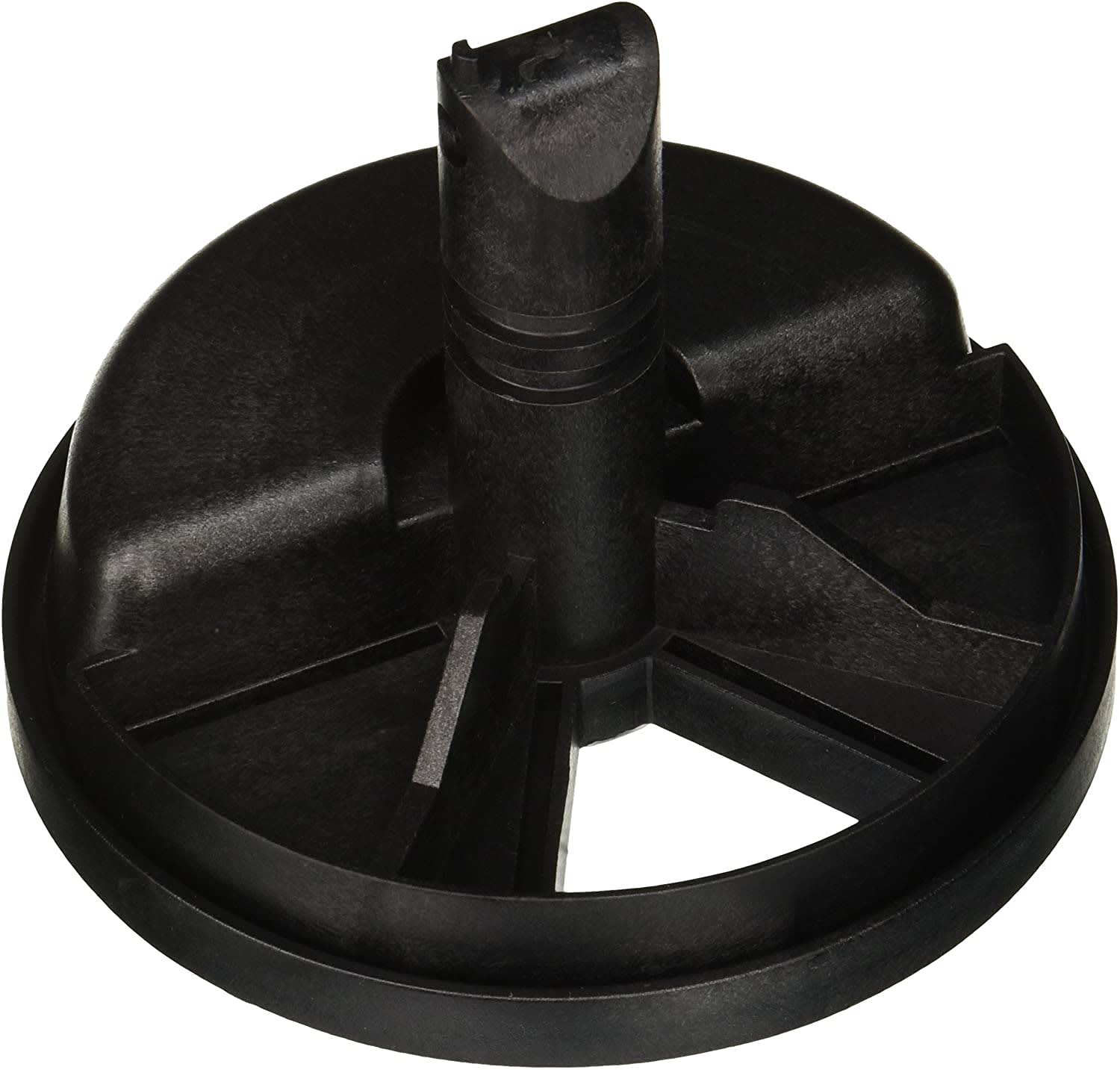

Hayward SPX0714CA Key/Seal Assembly (Diverter with Integrated Spider Gasket) for Vari-Flo XL SP0714T
The Hayward SPX0714CA is the OEM key/seal (diverter) assembly used inside the Hayward Vari-Flo XL multiport valve model SP0714T. This is the internal diverter component that routes water through the valve positions and provides sealing between ports.
Fits / Compatibility
- Designed for Hayward Vari-Flo XL multiport valve SP0714T (commonly a 1-1/2" top-mount valve).
- Commonly used on select Hayward ProSeries and VL Series sand filter systems that use the SP0714T valve.
- Always confirm the valve model number on the valve body label (SP0714T) before ordering.
What’s Included
- Internal diverter / key assembly
- Integrated 4-spoke spider gasket molded/glued into the assembly (not sold separately on many setups)
What It Fixes
- Water leaking out of the waste/backwash port when in the Filter position (often a worn spider gasket)
- Cross-port bypassing (poor separation between valve positions)
- Loss of proper flow control due to a worn or damaged diverter/key assembly
Installation Notes
- Shut off power to the pump and relieve filter pressure before opening the valve.
- Take a quick photo of the valve orientation before disassembly to ensure correct reassembly.
- Clean the valve body sealing surface before installing the new assembly.
- Tighten cover screws evenly in a crisscross pattern to help prevent leaks.
Related Products
- Hayward SP0714T Vari-Flo XL Multiport Valve (search)
- Hayward SPX0714Z1 Cover O-Ring (search)
- Multiport Valve Cover Screws/Hardware (search)
- Silicone O-Ring & Gasket Lubricant (search)
Maintenance Tips
- Never change multiport valve positions while the pump is running—always turn the pump off first.
- If you notice water slowly draining to waste while filtering, inspect/replace the diverter assembly before it worsens.
- Keep the cover O-ring lightly lubricated with silicone-based lube to reduce pinching and seepage.
- After installation, run the system and verify there is no leakage at the lid and no flow to the waste line in Filter mode.
