Hayward H-Series Heater Display Board Only | IDXL2DB1930
Hayward Products
SKU: HPPIDXL2DB1930

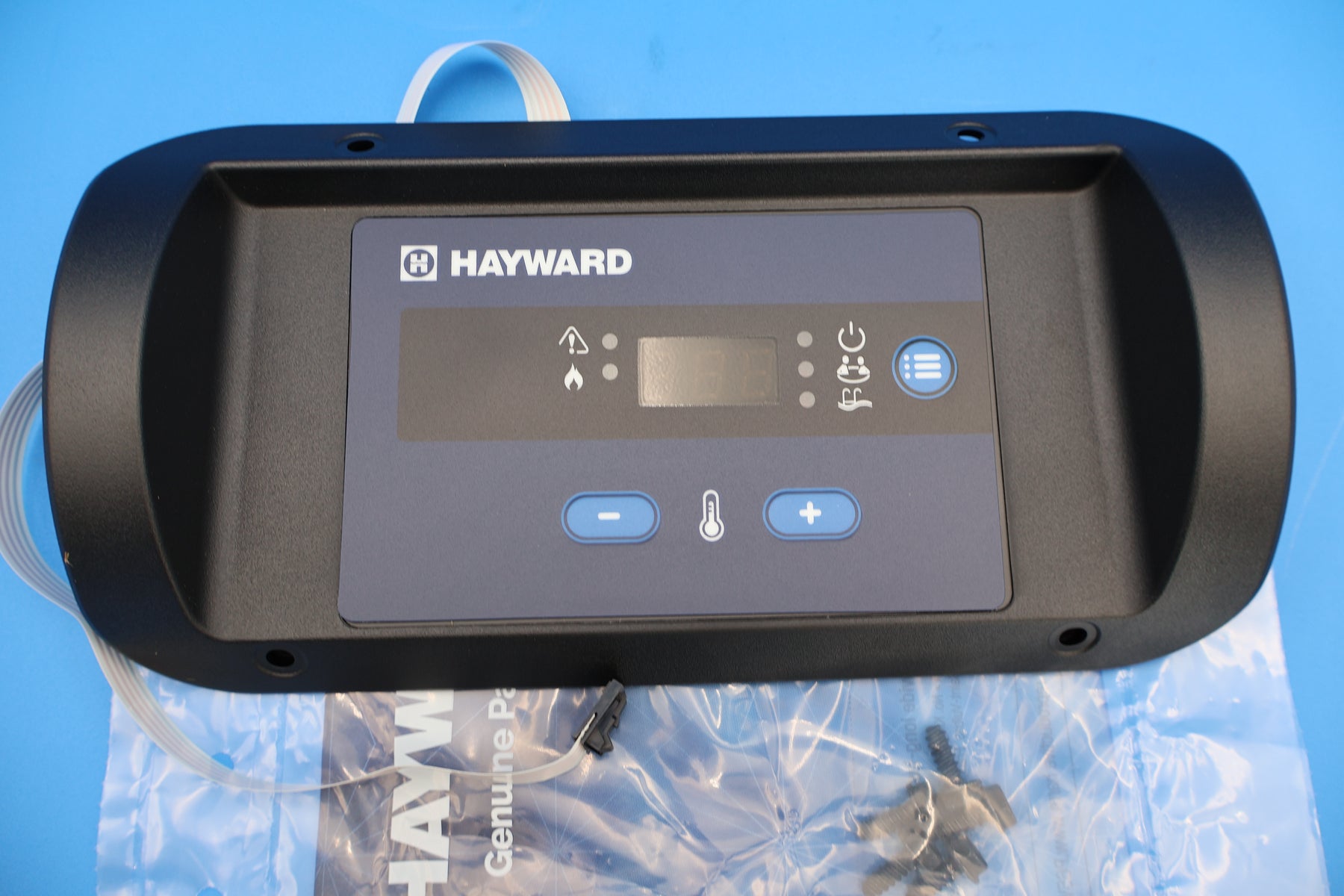

Hayward IDXL2DB1930 Display Board Kit
Part Number: IDXL2DB1930
Description
The Hayward IDXL2DB1930 is a replacement display board kit designed for the Universal H-Series Low NOx and Induced Draft heaters. It features a clear LCD readout and integrated communication cable to restore proper control and display functionality on compatible heater models.
Compatibility & Fitment
- Designed for use with Hayward Universal H-Series Low NOx and Induced Draft heaters (models such as H250IDL2, H350IDL2, H400IDL2, H150FD, H250FD, etc).
- Perfect when the existing control board or display has failed, the screen is unreadable, or heater diagnostics are inaccessible.
- Must be installed according to the heater’s wiring diagram and safety instructions to maintain proper operation.
Features & Specifications
- Genuine Hayward replacement part for correct fit and performance.
- Includes display board and 4-pin communication cable for direct connection.
- Compact footprint; ideal for indoor or outdoor heater control boxes with limited space.
- Backed by manufacturer parts warranty (check heater model for coverage eligibility).
Installation Notes
Power down the heater and disconnect fuel supply as required. Remove the access panel and unplug the existing display board and connector cable. Mount the new board in the same location, attach the 4-pin cable, secure all fasteners, replace the access panel, restore power and fuel, then initiate boiler/heat-cycle to confirm full display and diagnostic functionality.
Maintenance Tip
During annual heater service, inspect the display board for signs of condensation, corrosion or loose connectors. Ensure the data cable is fully seated and that the screen remains legible. Replacing a suspect board early can help avoid unscheduled downtime and heater service calls.
