Hayward Handle & Piston Assembly | SPX0410BA
Hayward Products
SKU: SPX0410BA

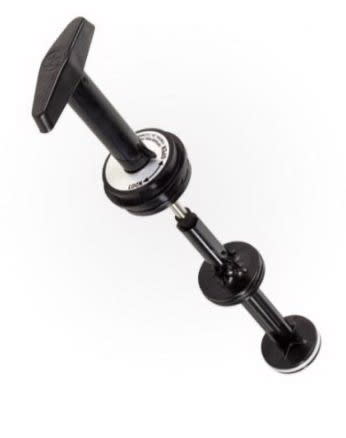

Hayward Handle & Piston Assembly (SPX0410BA)
The Hayward SPX0410BA Handle & Piston Assembly is a complete internal replacement component for select Hayward push-pull style slide valves. This assembly restores smooth valve operation by replacing the internal piston mechanism and external handle used to control water flow during filtration and backwashing.
Designed for durability in demanding pool environments, the piston creates a proper internal seal while the handle allows easy manual operation of the valve. Replacing worn piston assemblies helps prevent leakage, binding, and incomplete valve engagement.
Key Features
- Complete handle and piston replacement assembly
- Restores smooth push-pull valve operation
- Durable materials designed for long-term pool use
- Direct-fit replacement for compatible slide valves
Compatible Valve Models
- Hayward 2" push-pull slide valves
- Commonly used on SP0410X502S and SP0410X602S valve bodies
What’s Included
- Valve handle
- Internal piston assembly
Common Reasons to Replace
- Handle is difficult to move or sticks during operation
- Valve does not fully open or close
- Internal wear causing leaks or pressure loss
- Corrosion or deterioration of internal components
Installation & Maintenance Tips
- Shut off the pump and relieve all system pressure before servicing.
- Remove the valve top to access the piston assembly.
- Ensure the piston is properly aligned during installation.
- Inspect valve O-rings and seals and replace if worn.
- Cycle the valve slowly after installation to confirm smooth operation.
