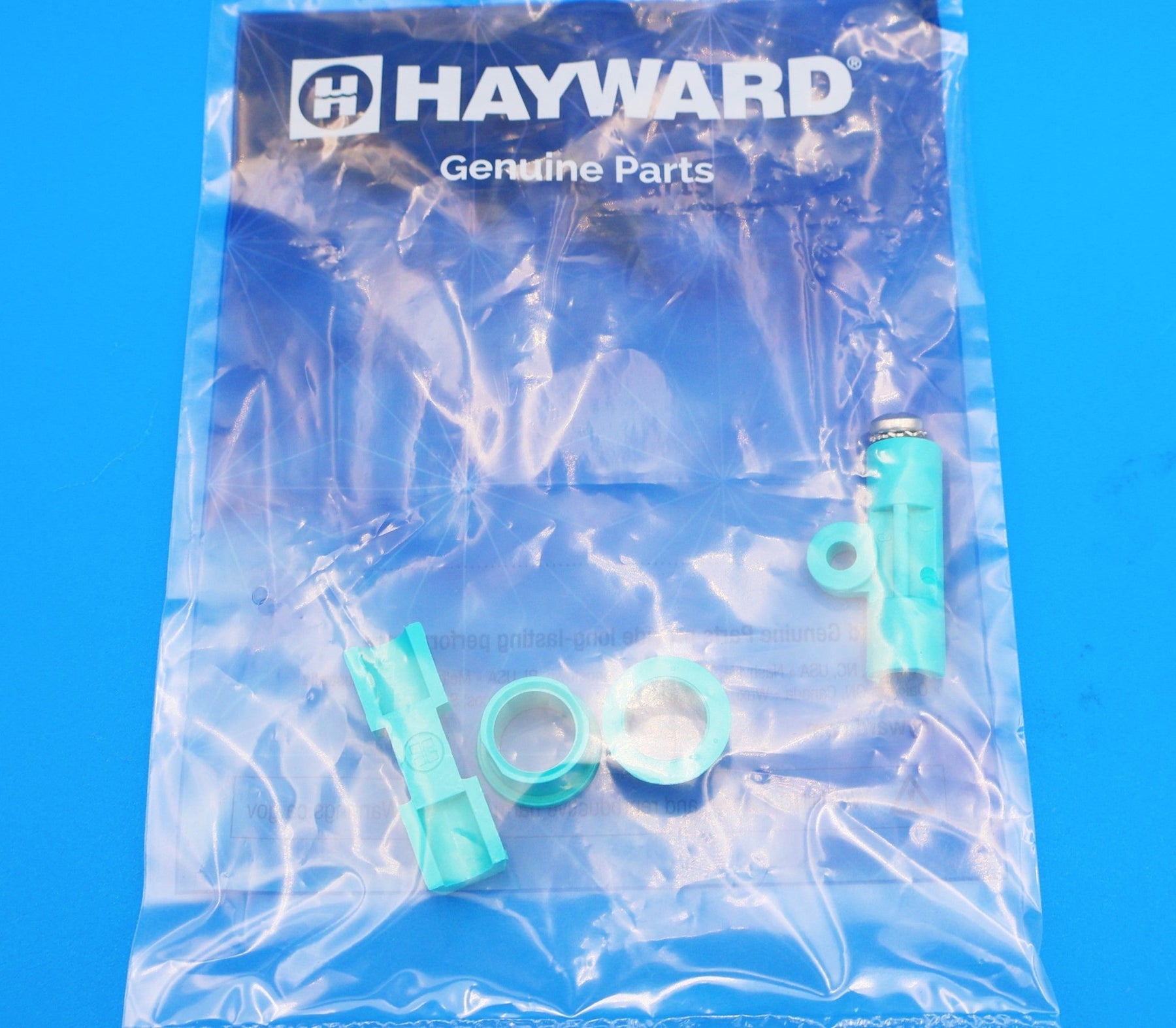

Hayward A-Frame Bushing Saddle Kit | AXV699P

The Hayward A-Frame Bushing Saddle Kit (AXV699P) is a replacement hardware kit designed to support proper alignment and secure mounting of internal drivetrain components in the Hayward A-Frame suction-side automatic pool cleaner. This kit includes bushings and saddle components that interface with the cleaner’s internal drive structure to help ensure smooth movement and reliable operation.

Compatible Hayward Pool Cleaner

Hayward A-Frame Suction Pool Cleaner

Key Features

Replacement bushing and saddle kit for the A-Frame cleaner
Helps maintain proper alignment of internal drivetrain parts
Precision-molded components for consistent engagement with gears
Durable construction designed for underwater use
Essential for restoring smooth motion on worn drivetrain assemblies

Specifications

Manufacturer: Hayward
Part Number: AXV699P
Application: Internal drivetrain support kit
Compatible Model: Hayward A-Frame Suction Pool Cleaner

Application & Use

This bushing saddle kit installs inside the cleaner’s drive assembly, supporting shaft and gear components so that they remain properly aligned during operation. Replacing worn bushings and saddles helps eliminate drivetrain slack and reduces noise, binding, or erratic cleaner movement.

Maintenance Tips

Inspect drivetrain components during regular service. If you notice excessive gear play, noise, or inconsistent wheel tracking, replacing the bushing saddle kit can restore smoother performance and extend the life of adjacent parts.
