Hayward 8" Dual Suction Frame & Cover, Round,White 2-Pack | WG1030AVPAK2
Hayward Products
SKU: WG1030AVPAK2

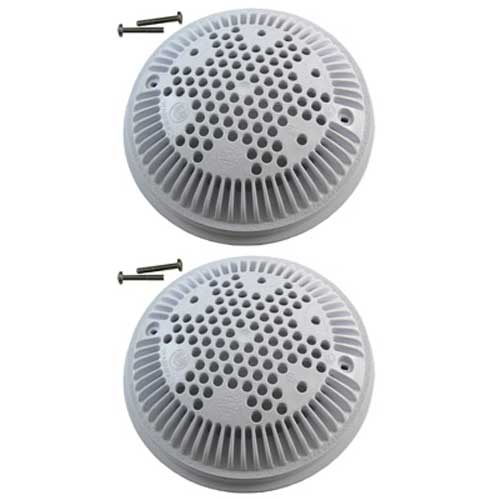

Hayward WG1030AVPAK2 – 8″ Round Dual Suction Frame & Cover (2-Pack, White)
Product Overview
The Hayward WG1030AVPAK2 is a dual-suction outlet frame and cover set designed for in-ground pools made of concrete, vinyl, or fiberglass. Each pack includes two 8-inch round frames and covers, engineered to meet current pool safety and performance standards.
Key Features
- Includes two 8″ round suction outlet frames and covers in a white finish.
- Dual-suction design supports higher flow rates and improved circulation.
- Complies with ANSI/ASME A112.19.8 and VGB Pool & Spa Safety Act standards.
- Low-profile, anti-vortex design reduces entrapment risks and improves safety.
- Durable construction ensures long life under pool water and chemical exposure.
Technical Specifications
- Part Number: WG1030AVPAK2
- Diameter: 8″ nominal (7-7/8″ actual cover diameter)
- Color: White
- Quantity: Two (2) frames and covers included
- Flow Rating: Up to 125 GPM (horizontal), 72 GPM (vertical)
- Open Area: Approximately 8.1 sq in per cover
- Compliance: VGB / ASME / ANSI approved
Applications & Fitment
This two-pack set is ideal for dual suction main drain systems or replacement installations in in-ground pools and spas. It fits 8″ Hayward suction outlet bodies and provides the necessary safety compliance for modern pool designs. Confirm screw spacing and sump compatibility before installation.
Installation Instructions
- Turn off pump power and relieve system pressure before servicing.
- Remove the old frame and cover, cleaning the mounting surface thoroughly.
- Position the new frame, align holes, and secure using corrosion-resistant screws.
- Attach the cover firmly to ensure it is flush and fully seated in the frame.
- Restore system flow and check for proper fit and sealing.
Troubleshooting
- Loose or missing screws: Tighten or replace immediately to ensure safety and secure attachment.
- Cracked or worn cover: Replace at once—damaged covers can compromise safety and flow performance.
- Reduced flow: Check for debris clogging the cover slots and ensure the frame alignment is correct.
Maintenance Tip
Inspect the cover and frame each season for signs of cracking, discoloration, or screw corrosion. Replace every 7 years or sooner if damage or wear is visible to maintain compliance with pool safety regulations.
