Hayward 12" x 12" High Flow Grate w/ Inner Frame | WGX1032BHF2
Hayward Products
SKU: WGX1032BHF2

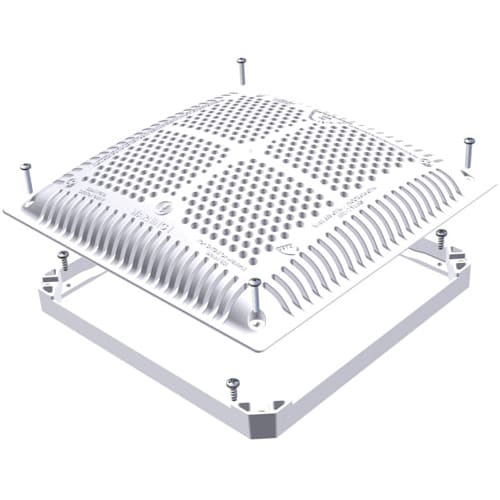

Hayward WGX1032BHF2 12" x 12" High Flow Suction Outlet (Main Drain) Cover with Inner/Outer Frame, White
The Hayward WGX1032BHF2 is a 12" x 12" high-flow suction outlet cover designed for residential and commercial concrete pool installations. This VGB-compliant cover assembly is built to provide high flow capacity while helping reduce entrapment risk when installed on an approved, compatible sump/frame configuration.
Key Features
- Part Number: WGX1032BHF2
- Brand: Hayward
- Type: High-flow suction outlet / main drain cover assembly
- Cover Size: 12" x 12" square
- Color: White
- Open Area: 41.07 sq-in
- Designed for concrete pool suction outlet installations
- VGB-compliant when installed per manufacturer requirements on an approved sump/frame
Maximum Allowable Flow Rates
- 3" Side Port, Floor Mounted: 416 GPM
- 4" Side Port, Floor Mounted: 484 GPM
- 3" Bottom Port, Wall Mounted: 308 GPM
- 4" Bottom Port, Wall Mounted: 308 GPM
Applications
Commonly used as a replacement cover on compatible Hayward 12" x 12" square high-flow suction outlets in concrete pools. Ideal for service replacement when an existing cover is cracked, missing, faded, or no longer compliant.
Installation Notes
- Verify the existing sump/frame and plumbing port configuration before ordering to ensure compatibility.
- Always shut off the pump and relieve suction before servicing any suction outlet.
- Use only the correct replacement screws/hardware specified for the cover/frame.
- Never operate the pool if a suction outlet cover is missing, broken, loose, or improperly installed.
Related Products
- Hayward WGX1032BHF2
- Hayward 12" x 12" Drain Covers
- Hayward Suction Outlet Frames & Inserts
- Main Drain Cover Screws & Hardware
- Pool Main Drain Covers
- Pool Suction Outlet Covers
Maintenance Tips
- Inspect suction outlet covers frequently for cracks, warping, looseness, or missing hardware.
- Replace the cover at least every 7 years, or immediately if damaged or not securely attached.
- Replace screws every time a cover is replaced to help ensure proper fastening.
- Keep the outlet area clear of debris to maintain designed flow and reduce stress on the cover.
