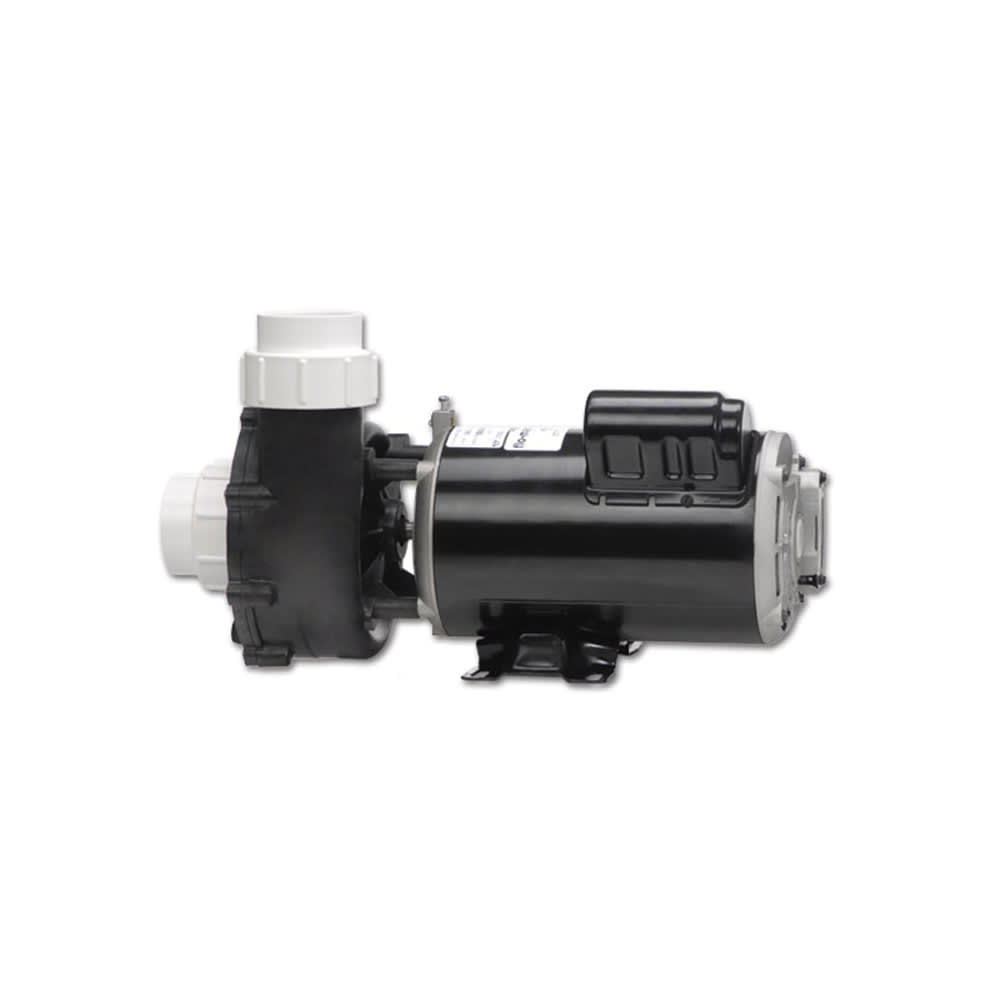

Gecko Aqua-Flo Flo-Master XP2 2.5 HP 2-Speed Side-Discharge Pump (48-Frame) – Model 06125000-1040

The Gecko Aqua-Flo Flo-Master XP2 06125000-1040 is a high-performance 2.5 HP dual-speed spa/hot-tub pump built on a 48-frame form factor. It is designed for demanding systems requiring high flow while fitting in the compact footprint typical of premium spa applications. With 2″ inlets and outlets and a side-discharge configuration, it offers versatile installation options.

Key Features

2.5 HP nominal power rating with dual-speed operation for performance and efficiency.
230 V supply voltage (single phase) – designed for spa or whirlpool plumbing systems.
48-frame motor footprint ensures compatibility with many existing installations while delivering enhanced flow.
2″ inlet and outlet ports support high volume circulation and larger plumbing designs.
Side-discharge orientation offers flexible plumbing layout and easier retrofit in tight equipment pads.

Technical Specifications

Part Number: 06125000-1040
Horsepower: 2.5 HP
Speed: 2-Speed motor (High/Low)
Voltage: 230 V, single phase
Frame Size: 48-frame
Ports: 2″ inlet and outlet
Orientation: Side-discharge (compact equipment pad friendly)

Installation & Compatibility Notes

Before installing this pump, shut off power to the equipment pad and ensure the system is fully depressurized. Remove the old pump and verify the motor frame and shaft height match the new unit. Confirm plumbing size (2″ inlet/outlet) and port orientation for proper fit. Mount the pump on a solid, level pad, reconnect power matching the voltage and phase configuration, and verify that the shaft rotates in the correct direction for your system. After startup, monitor flow and amperage to ensure the system is operating as expected.

Maintenance Tips

Keep the pump base and motor vents clear of debris to support cooling and longevity.
Check hydraulic performance and motor current periodically to detect early signs of wear or blockage.
Inspect the lid O-ring and clamp regularly; replace O-ring if cracking or leakage appears.
During seasonal shutdowns, ensure the pump is drained or protected from freeze conditions (if applicable).

Why Choose This Pump?

For service professionals and advanced residential pool/spa owners, the Gecko Aqua-Flo Flo-Master XP2 06125000-1040 offers a premium compact pump solution with high flow capability, dual-speed flexibility, and a reliable footprint. Its 48-frame design and side-discharge layout make it an excellent retrofit option, and the 2.5 HP rating ensures strong performance in high-demand spa circulation scenarios.
