Pentair Clean & Clear RP 200 sq ft Cartridge Filter 160353 | EC-160353
Pentair
SKU: PENEC160353

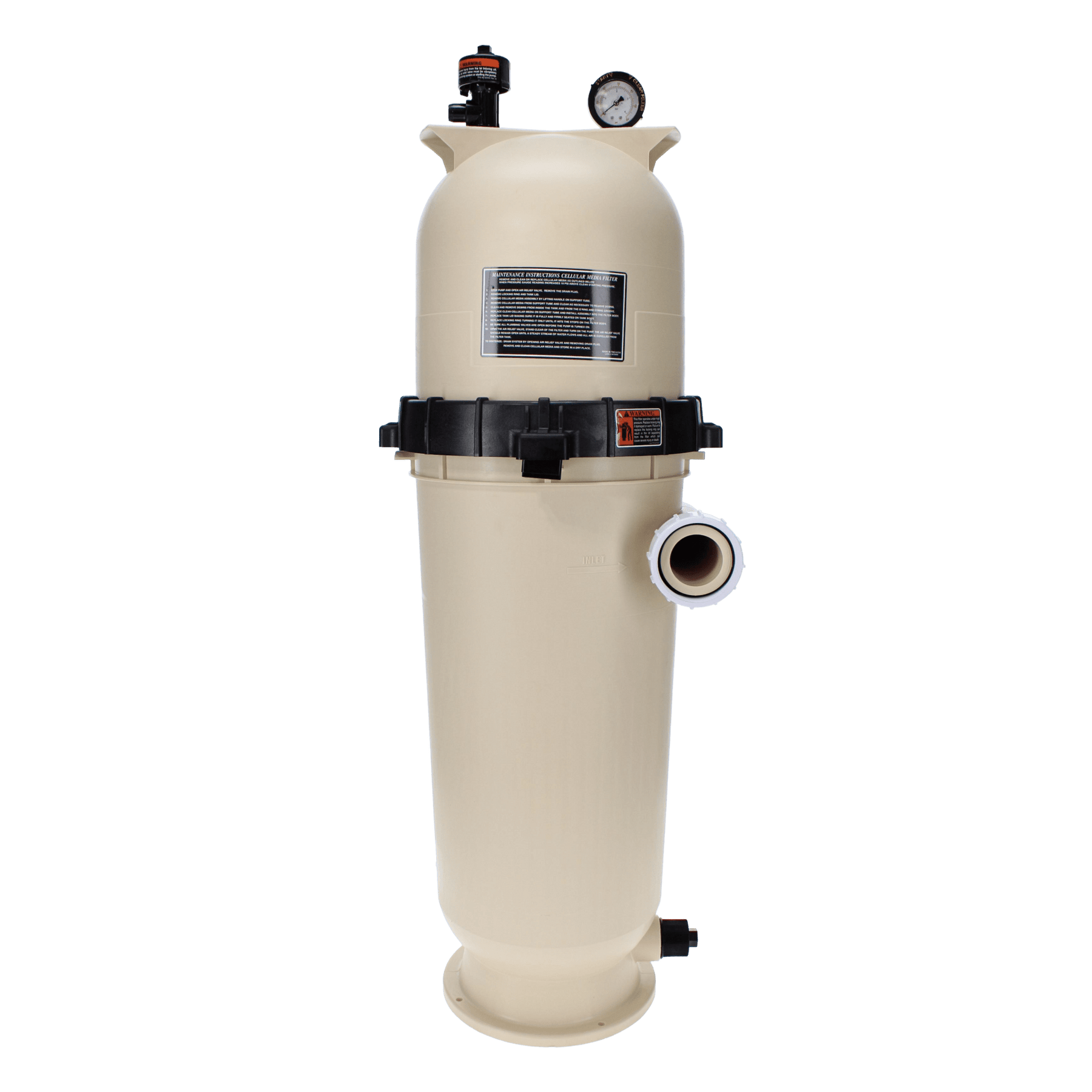

Pentair EC‑160353 Clean & Clear RP Cartridge Filter – 200 sq ft
The Pentair EC‑160353 is a high‑efficiency single‑cartridge pool filter with a 200 square‑foot filtration area. It features a chemical‑resistant, fiberglass‑reinforced polypropylene tank, a side‑entry port for improved flow, and a quick‑connect lock‑ring for easy access and maintenance.
Key Features:
- 200 sq ft effective filtration area for longer cleaning cycles
- Side‑entry design optimizes hydraulic efficiency and reduces head pressure
- Tank and components built to resist pool chemical corrosion
- Quick‑access lock ring allows tool‑free removal of cartridge for rinsing
- Designed to trap particles as small as ~20 microns for clearer water.
Technical Specifications:
- Model / SKU: EC‑160353
- Filtration Area: 200 sq ft
- Maximum Recommended Flow Rate: ~150 GPM (varies by plumbing and system setup)
- Tank Material: Fiberglass‑reinforced polypropylene
- Connection Type: Side‑entry port with spin‑on unions
- Drain Port: 1½″ for easy winterization and maintenance
Maintenance Tip: When the system pressure gauge rises about 8‑10 psi above the clean start‑up level, it’s time to rinse the cartridge. Shut off the pump, relieve system pressure, then remove the lock ring, pull out the cartridge and hose it off thoroughly. Inspect the O‑ring and lock ring for wear, replace if needed, reassemble the tank, prime the pump and check for proper operation and absence of leaks.
