Pentair Tagelus TA60D 3.1 sq ft Filter Top Mount | EC-145241
Pentair
SKU: EC-145241

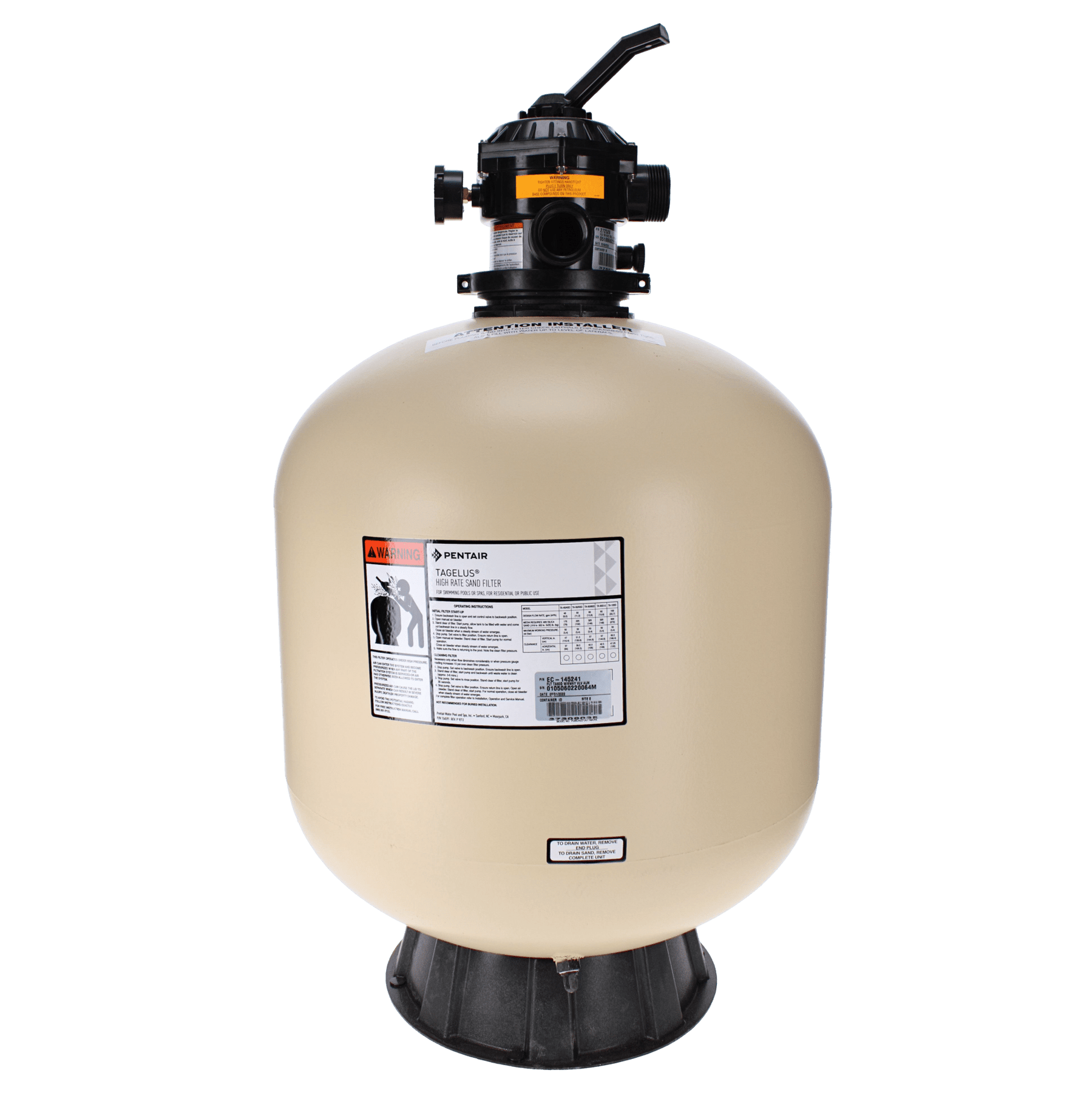

Pentair EC-145241 – Tagelus TA60D 24″ Top-Mount Sand Filter
Product Overview
The Pentair EC-145241 Tagelus TA60D is a high-performance top-mount sand filter designed for residential in-ground pools. Featuring a one-piece fiberglass-reinforced tank and a six-position top-mounted multiport valve, it provides efficient filtration, long service life and minimal maintenance.
Key Features
- Fiberglass-reinforced one-piece filter tank for strength and durability.
- Six-position top-mount multiport valve for easy operation (Filter, Backwash, Rinse, Waste, Recirculate, Closed).
- Special lateral design to maintain a flat sand bed and prevent channeling for improved filter efficiency.
- Built-in sight glass, manual air relief valve and combination sand/water drain to simplify servicing.
Technical Specifications
- Part Number: EC-145241
- Model: Tagelus TA60D
- Tank Diameter: Approx. 24½″
- Filtration Area: ~3.1 sq ft
- Rated Flow: Up to ~60 GPM
- Maximum Operating Pressure: 50 psi
- Sand Required: ~325 lbs (typical for this size)
Applications & Compatibility
This sand filter is ideal for in-ground residential pools requiring a reliable filter with minimal upkeep. The EC-145241 covers medium-sized pools and is suitable when upgrading from smaller filters or replacing older sand filter systems. Ensure plumbing size, valve port size (1½″ typically) and available height clearance match your installation before purchasing.
Installation Instructions
- Place the filter on a level, stable pad rated for the load of the filled tank.
- Connect to the pump return plumbing using appropriate unions or fittings, making sure to align valve ports correctly.
- Fill the tank ~¾ full of pool-grade sand, install the laterals and set up the multiport valve per manufacturer instructions.
- Start the system, monitor the pressure gauge, and backwash the filter as required to establish normal operation.
Troubleshooting
- High pressure rise soon after startup: Check for closed returns or blocked plumbing. Confirm sand depth and lateral assembly.
- Poor water clarity: Confirm filtration flow is correct, valve is in “Filter” position and sand is not channeling.
- Leaks around valve or tank base: Inspect O-rings, ensure union connections are tight, and verify tank mounting surface is solid.
Maintenance Tip
Backwash the filter when pressure rises ~8-10 psi above the clean baseline. Inspect valve and tank annually for wear or degradation. Replace sand every 5-7 years for optimal performance and clean water clarity.
