Zodiac Ranger Replacement Parts

Zodiac

Zodiac Ranger Replacement Parts

Fits models:W01698

  • Genuine ZodiacOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros

Exploded View

Tap a number to see the part, price and stock.

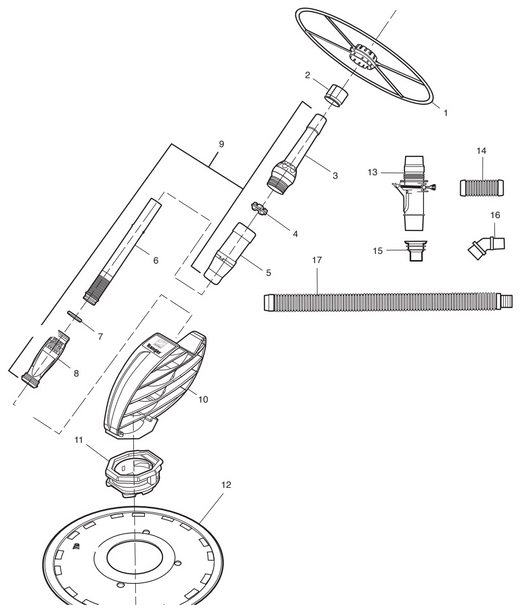

Zodiac Zodiac Ranger Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (1)

Large 16" Wheel Deflector

Part # W46155

Call for availability

Wheel Adapter

Part # W69742

Call for availability

Cassette Pipe w/ Handnut

Part # W69729

Call for availability

Compression Ring

Part # W74000

Call for availability

Diaphragm Chamber

Part # W81741

Call for availability

Inner Extension Pipe

Part # W56525

Call for availability

Diaphragm Retaining Ring

Part # W81600

Call for availability

Above-Ground Cassette Diaphragm

Part # W81710

Call for availability

Cassette Complete

Part # W69728

Call for availability

Frame Assembly

Part # W69730

Call for availability

Footpad

Part # W72855

Call for availability

Wahoo Slotted Disc

Part # W70485

Call for availability

FlowKeeper Valve

Part # W60050

Call for availability

4 1/2" Connector

Part # W33205

Call for availability

Above-Ground Valve Cuff

Part # W70264

Call for availability

Hose, 1 Meter, White

Part # W38205

Call for availability

Interactive exploded-view parts diagram for the Zodiac Ranger suction pool cleaner (W01698). Click any numbered part to see the part number, price and stock. Common replacements include diaphragms, footpads, discs, wheel deflectors and hoses. Not sure which part you need? Call us or bring the old part into any of our stores and we'll match it.
