Zodiac MX8 Elite Replacement Parts

Zodiac

Zodiac MX8 Elite Replacement Parts

Fits models:MX8EL

  • Genuine ZodiacOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros

Exploded View

Tap a number to see the part, price and stock.

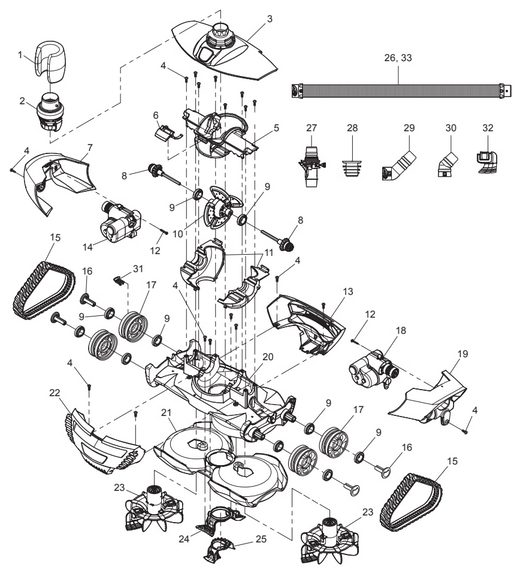

Zodiac Zodiac MX8 Elite Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (13)

Hose Float

Part # R0526800

$11.94In Stock

Top Cover w/ Swivel Assembly

Part # R0525400

Call for availability

Screw, M4 x 12mm, Phillips #2 Pan Head, 5/PK

Part # R0527100

Call for availability

Middle Engine Housing w/ Ramp and 2 Seals

Part # R0545700

Call for availability

Cover Latch

Part # R0526300

$8.99$13.99In Stock

Body Panel, Right (B)

Part # R0526600

Call for availability

Drive Shaft Assembly

Part # R0525100

Uses 2 per pump

$19.94$38.99In Stock

Bearing (Wheel and Engine)

Part # R0527000

Call for availability

Engine Assembly

Part # R0524900

$30.75$39.99In Stock

Lower Engine Housing

Part # R0525800

Call for availability

Screw, Thread Forming, #6-18 7/8" Type A, Phillips #2 Pan Head, 5/PK

Part # R0527200

Call for availability

Body Panel, Rear (D)

Part # R0525600

Call for availability

Track

Part # R0526100

Uses 2 per pump

$13.94$24.99In Stock

Wheel Pin R2

Part # R0545800

Call for availability

Wheel

Part # R0526000

Call for availability

Body Panel, Left (A)

Part # R0526700

Call for availability

Chassis Assembly

Part # R0727400

Call for availability

Lower Body Housing

Part # R0715900

Call for availability

Body Panel, Front MX8 Elite

Part # R0715800

Call for availability

Inlet Assembly

Part # R0535500

Call for availability

Regular Opening

Part # R0535600

Call for availability

FlowKeeper Valve

Part # R0527400

Call for availability

Twist-Lock 45-Degree Elbow, Extended

Part # R0532400

Call for availability

45-Degree Elbow

Part # R0532500

Call for availability

Wheel Speed Indicator

Part # R0596100

Call for availability

Cyclonic Scrubbing Brush, 4/PK

Part # R0714400

Call for availability

Interactive exploded-view parts diagram for the Zodiac MX8 Elite suction pool cleaner (MX8EL). Click any numbered part to see the part number, price and stock. Common replacements include tracks, wheels, direction control devices, cyclonic scrubbing turbines, body panels and tune-up kits. Not sure which part you need? Call us or bring the old part into any of our stores and we'll match it.
