Zodiac MX6 Replacement Parts

Zodiac

Zodiac MX6 Replacement Parts

Fits models:MX6

  • Genuine ZodiacOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros

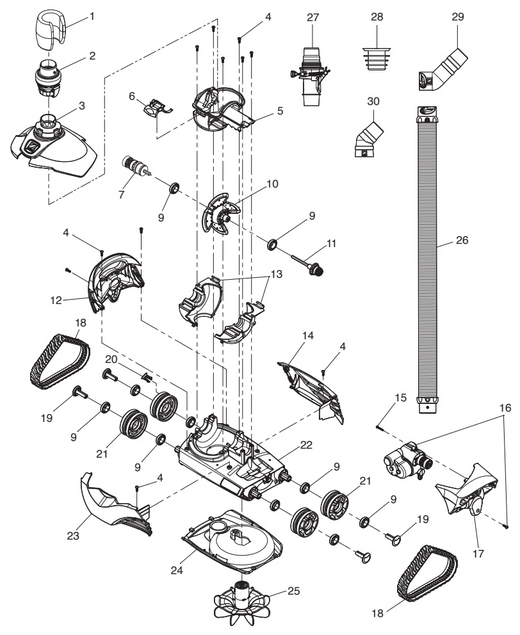

Exploded View

Tap a number to see the part, price and stock.

Zodiac Zodiac MX6 Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (8)

Hose Float

Part # R0526800

$11.94In Stock

Top Cover w/ Swivel Assembly

Part # R0566800

Call for availability

Screw, Phillips #2 Pan Head, 5/PK

Part # R0527100

Call for availability

Middle Engine Housing w/ Ramp and 2 Seals

Part # R0566900

Call for availability

Cover Latch

Part # R0567000

Call for availability

Drive Pulley Assembly

Part # R0595101

Call for availability

Bearing (Wheel and Engine)

Part # R0527000

Call for availability

Engine Assembly

Part # R0524900

$30.75$39.99In Stock

Body Panel, Right (D)

Part # R0567200

Call for availability

Lower Engine Housing

Part # R0525800

Call for availability

Body Panel, Rear (B)

Part # R0567300

Call for availability

Screw, Thread Forming, Phillips #2, 5/PK

Part # R0527200

Call for availability

Body Panel, Left (C)

Part # R0567400

Call for availability

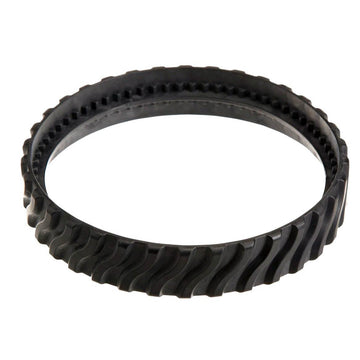

Track

Part # R0526100

Uses 2 per pump

$13.94$24.99In Stock

Wheel Pin R2

Part # R0545800

Call for availability

Wheel Speed Indicator

Part # R0596100

Call for availability

Wheel

Part # R0526000

Call for availability

Chassis Assembly

Part # R0567500

Call for availability

Body Panel, Front (A)

Part # R0567600

Call for availability

Lower Body Housing

Part # R0567700

Call for availability

Cyclonic Turbine

Part # R0525000

Call for availability

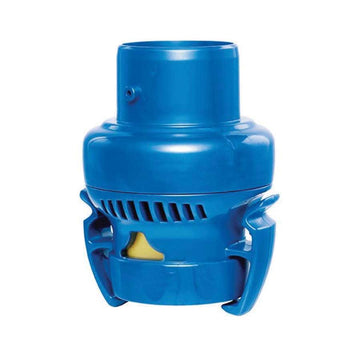

FlowKeeper Valve

Part # R0527400

Call for availability

Twist-Lock 45-Degree Elbow, Extended

Part # R0532400

Call for availability

45-Degree Elbow

Part # R0532500

Call for availability

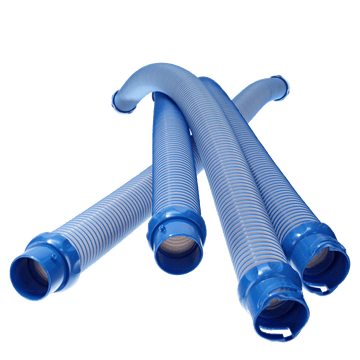

Interactive exploded-view parts diagram for the Zodiac MX6 suction pool cleaner (MX6). Click any numbered part to see the part number, price and stock. Common replacements include tracks, wheels, engine assemblies, body panels, flow regulator valves and twist-lock hoses. Not sure which part you need? Call us or bring the old part into any of our stores and we'll match it.
