Pentair SuperMax DOE Pump Replacement Parts

Pentair

Pentair SuperMax DOE Pump Replacement Parts

Fits models:SuperMax DOE

  • Genuine PentairOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros

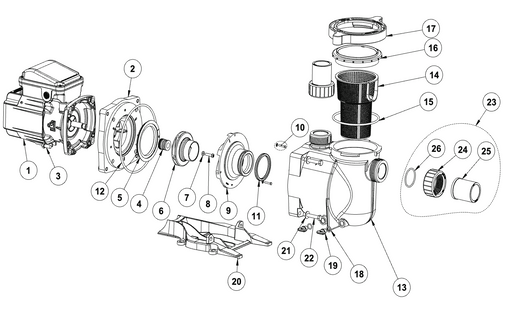

Exploded View

Tap a number to see the part, price and stock.

Pentair Pentair SuperMax DOE Pump Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (13)

Motor

Part # 356362S

$311.99$399.99Out of stock

Seal Plate

Part # 355612Z

Call for availability

Bolt, Motor (Qty. 4)

Part # 070249

Call for availability

Shaft Seal Set

Part # 354545S

$24.75$29.99In Stock

Hydraulic Isolator

Part # 356357Z

Call for availability

Impeller

Part # 356356Z

Call for availability

Diffuser

Part # 356358Z

Call for availability

Diffuser Seal

Part # 355030Z

$11.50$16.99In Stock

Strainer Pot

Part # 351089

Call for availability

No. Strainer Basket

Part # 355667Z

Call for availability

O-Ring, Lid

Part # 357255Z

$8.75$12.99In Stock

Lid

Part # 350091Z

$26.94$39.99In Stock

Locking Ring

Part # 351090

Call for availability

Union Nut (Qty. 2)

Part # 270141Z

Call for availability

Union Adapter (Qty. 2)

Part # 350093Z

Call for availability

Union O-Ring (Qty. 2)

Part # 6020018Z

Call for availability

Motor Fan Guard

Part # 357810

Call for availability

Pentair SuperMax DOE Pump parts, matched to the diagram. Click any number on the exploded view to see the part, price and stock. Leaking pump? It is usually the shaft seal or an o-ring. Losing prime? Start with the lid o-ring. Not sure what you have? Call us or bring the part into any of our Phoenix, Scottsdale, Chandler or Las Vegas stores and we'll match it.
