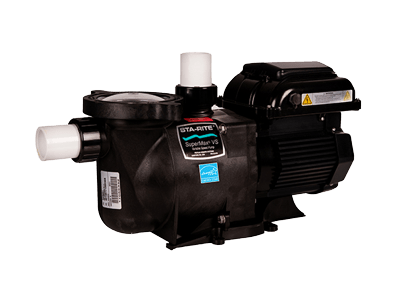

Pentair SuperMax Pump Replacement Parts

Pentair

Pentair SuperMax Pump Replacement Parts

Fits models:SuperMax

  • Genuine PentairOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros
Shop the complete pump

Exploded View

Tap a number to see the part, price and stock.

Pentair Pentair SuperMax Pump Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (14)

Part

Part # 354804S / 354822S / 354824S / 354816S / 355021S / 355023S / 355027S / 355011S / 355013S

Call for availability

Seal Plate, Black

Part # 355612Z

Call for availability

Clamp, Ramp & Cam, Black

Part # 351090

Call for availability

Lid

Part # 350091Z

$26.94$39.99In Stock

Volute, Black

Part # 351089

Call for availability

Adapter, 2 req.

Part # 350093Z

Call for availability

Nut, 2 req.

Part # 270141Z

Call for availability

O-Ring Adapter #2-226, 2 req.

Part # 6020018Z

Call for availability

Seal Diffuser

Part # 355030Z

$11.50$16.99In Stock

Seal Set

Part # 354545S

$24.75$29.99In Stock

Seal, mechanical, ozone/salt resistant

Part # 356210S

Call for availability

Basket, Large

Part # 355667Z

Call for availability

Impeller 1/2 HP

Part # 355074Z

$40.94$59.99In Stock

Motor End Cap and Screw

Part # 401014Z

Call for availability

Fan Guard Kit TEFC/Super- Duty

Part # 357924Z

Call for availability

Pentair SuperMax Pump parts, matched to the diagram. Click any number on the exploded view to see the part, price and stock. Leaking pump? It is usually the shaft seal or an o-ring. Losing prime? Start with the lid o-ring. Not sure what you have? Call us or bring the part into any of our Phoenix, Scottsdale, Chandler or Las Vegas stores and we'll match it.
