Pentair StarGuard Main Drain Replacement Parts

Pentair

Pentair StarGuard Main Drain Replacement Parts

Fits models:500100-500109500110-500120500120-500125500135500140-500149

  • Genuine PentairOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros

Exploded View

Tap a number to see the part, price and stock.

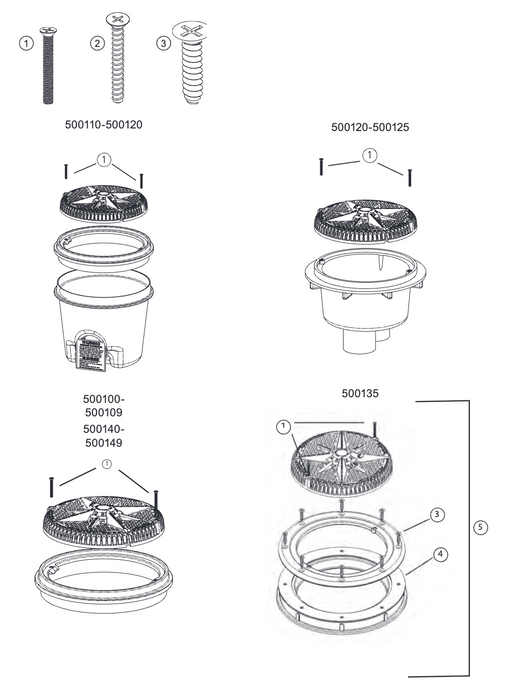

Pentair Pentair StarGuard Main Drain Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (0)

Main drain cover screw kit, 2 screws (for 500110-500120)

Part # 510543Z

Call for availability

Main drain cover screw kit, 2 screws (for 500120-500125)

Part # 510583Z

Call for availability

Main drain cover screw kit, 8 screws (for 500135)

Part # 510592Z

Call for availability

Gasket

Part # 07017-0079

Call for availability

Vinyl ring and gasket kit

Part # 500135

Call for availability

Interactive exploded-view parts diagram for the Pentair StarGuard Main Drain. Click any numbered part to see the part number, price and stock, or call us and we will find it for you.
