Quad D.E. 80 Filter Replacement Parts

Pentair

Quad D.E. 80 Filter Replacement Parts

Fits models:188593EC-188593

  • Genuine PentairOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros

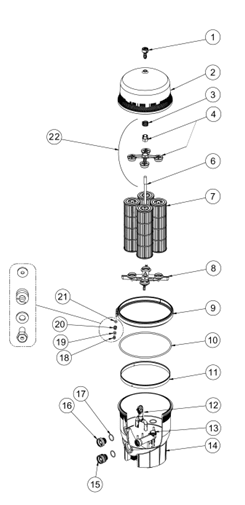

Exploded View

Tap a number to see the part, price and stock.

Pentair Quad D.E. 80 Filter Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (10)

Cartridge Element (80 sq ft)

Part # 178655Z

Call for availability

Bottom Manifold Assembly

Part # 170059

Call for availability

Tank O-Ring

Part # 39010200Z

$47.99$62.99In Stock

Backup Ring 19"

Part # 195339

$69.94$79.99In Stock

Diverter Assembly Retrofit Kit

Part # 196024S

Call for availability

Outlet Pipe Assembly

Part # 170036

Call for availability

Bottom Tank Assembly

Part # 195999

Call for availability

Bottom Bulkhead

Part # 178575Z

Call for availability

Bulkhead Fitting

Part # 194801Z

Call for availability

Bulkhead O-Ring

Part # 86006900Z

Uses 2 per pump

$8.99$19.99In Stock

Clamp Nut

Part # 194997Z

Call for availability

Clamp Washer (large)

Part # 195611Z

Call for availability

Clamp Spring

Part # 195612Z

Call for availability

Complete Element Assembly

Call for availability

Pentair Quad D.E. 80 cartridge-style D.E. filter parts, matched to the diagram. Click any number on the exploded view to see the part, price and stock. The cartridges (#7), air bleed tube (#6) and lid (#2) are size-specific, and these fit the 80 sq ft filter. Leaking at the seam? Replace the tank o-ring (#10). Not sure what you have? Call us or bring the part into any of our Phoenix, Scottsdale, Chandler or Las Vegas stores and we'll match it.
