Pentair Max-E-Pro Pump Replacement Parts

Pentair

Pentair Max-E-Pro Pump Replacement Parts

Fits models:Max-E-Pro

  • Genuine PentairOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros

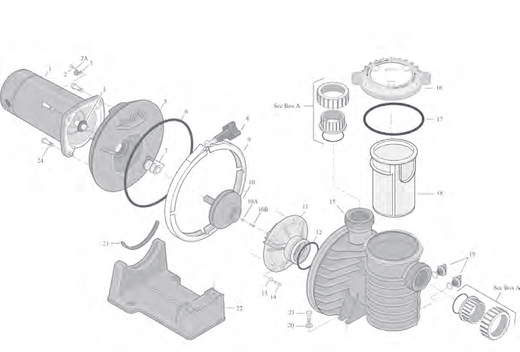

Exploded View

Tap a number to see the part, price and stock.

Pentair Pentair Max-E-Pro Pump Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (3)

#10-32 x 1/2 in. Screw

Part # U30-692SS

Call for availability

Bonding Lug

Part # U17-568

Call for availability

O-Ring (Round)

Part # U9-228AZ

+1 more option

$11.99$16.99In Stock

Shaft Seal, EDPM black

Part # 0101S

Call for availability

Clamp Knob

Part # WC36-22Z

Call for availability

Clamp

Part # C19-37AZ

Call for availability

Diffuser O-Ring

Part # U9-374Z

Call for availability

#8 Lock Washer

Part # U43-21SSZ

Call for availability

Screw (with C1-271P1Z Diffuser)

Part # U30-542SSZ

Call for availability

Tank Body Assembly 2

Part # 0110S

Call for availability

Trap Cover Assembly

Part # 0111S

Call for availability

Trap O-Ring

Part # 1440Z

Call for availability

Basket

Part # C8-58PZ

Call for availability

U178- 19 1/4 in. NPT Drain Plug

Part # 920PZ

Call for availability

Drain Plug O-Ring

Part # U9-359Z

Call for availability

Base Washer

Part # U43-41SSZ

Call for availability

Base Screw

Part # U30-918SS

Call for availability

Base

Part # C4-78P / C104-79P

Call for availability

3/8-16 x 1 in. Hex Hd. Screw

Part # U30-74SSZ

Call for availability

Fan Guard Kit TEFC/Super- Duty

Part # 357924Z

Call for availability

Pentair Max-E-Pro Pump parts, matched to the diagram. Click any number on the exploded view to see the part, price and stock. Leaking pump? It is usually the shaft seal or an o-ring. Losing prime? Start with the lid o-ring. Not sure what you have? Call us or bring the part into any of our Phoenix, Scottsdale, Chandler or Las Vegas stores and we'll match it.
