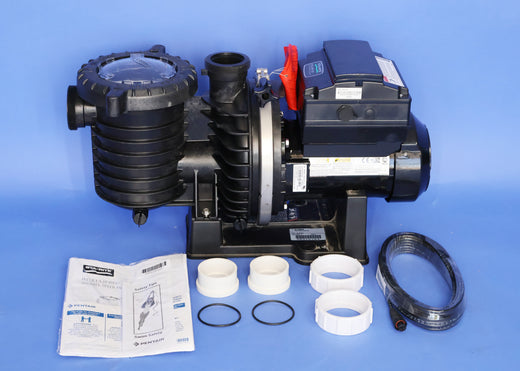

Pentair IntelliPro VSF / IntelliPro 2 VST / IntelliPro VS Pump (After 2018) Replacement Parts

Pentair

Pentair IntelliPro VSF / IntelliPro 2 VST / IntelliPro VS Pump (After 2018) Replacement Parts

Fits models:IntelliPro VSFIntelliPro 2 VSTIntelliPro VS

  • Genuine PentairOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros
Shop the complete pump

Exploded View

Tap a number to see the part, price and stock.

Pentair Pentair IntelliPro VSF / IntelliPro 2 VST / IntelliPro VS Pump (After 2018) Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (5)

Drive Kit with Keypad (Includes Item #2, 7 and 8) (VSF model)

Part # 353141Z / 356893Z

Call for availability

17307- Tank Body Assembly (Includes Trap Cover and Items #21-24)

Part # 0110S

Call for availability

17307- Trap Cover Assembly (Includes Trap Cover and Item #21)

Part # 0111S

Call for availability

Keypad Relocation Kit (Includes Keypad Relocation Cable and Blank Drive Cover)

Part # 356905Z

Call for availability

Keypad Assembly Kit

Part # 358527Z

Call for availability

Drive (VSF model)

Part # 356657Z / 356892Z

Call for availability

C103- Seal Plate

Part # 194PZ

Call for availability

Shaft Seal, EPDM black

Part # 0101S

Call for availability

C105- Impeller Assembly

Part # 238PLA

Call for availability

Diffuser

Part # C1-271PZ

Call for availability

U30- Diffuser Screw

Part # 922SS

Call for availability

Diffuser O-RIng

Part # U9-374Z

Call for availability

V-Clamp

Part # C19-37AZ

Call for availability

Clamp, Knob

Part # WC36-22Z

Call for availability

35505- Trap O-Ring, 6.90 O.D. 6.35 I.D.

Part # 1440Z

Call for availability

Trap Basket

Part # C8-58PZ

Call for availability

Drain Plug (Qty. 2)

Part # U78-920PZ

Call for availability

Drain Plug O-Ring (Qty. 2)

Part # U9-359Z

Call for availability

U11- Union Collar (Qty. 2)

Part # 200PSZ

Call for availability

U11- 26 2" Slip Adapter (Qty. 2)

Part # 196PSZ

Call for availability

O-Ring #2-231 (Qty. 2)

Part # U9-362Z

Call for availability

U30- Base Screw, 5/16-14 x 1 in. Lg.Hi-Lo Hex (Qty2)

Part # 918SS

Call for availability

Motor Base

Part # C4-78P

Call for availability

Power End - IntelliPro VST and VS

Part # 354045

Call for availability

Pentair IntelliPro VSF / IntelliPro 2 VST / IntelliPro VS Pump (After 2018) parts, matched to the diagram. Click any number on the exploded view to see the part, price and stock. Leaking pump? It is usually the shaft seal or an o-ring. Losing prime? Start with the lid o-ring. Not sure what you have? Call us or bring the part into any of our Phoenix, Scottsdale, Chandler or Las Vegas stores and we'll match it.
