Pentair IntelliPro VS Pump (Before 2019) Replacement Parts

Pentair

Pentair IntelliPro VS Pump (Before 2019) Replacement Parts

Fits models:IntelliPro VS

  • Genuine PentairOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros

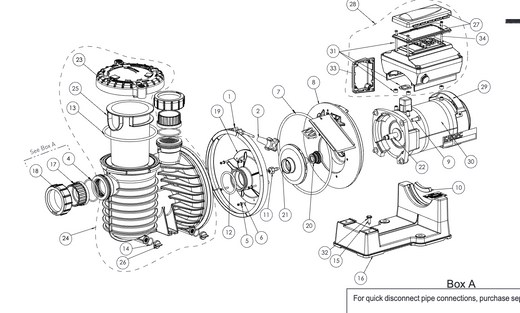

Exploded View

Tap a number to see the part, price and stock.

Pentair Pentair IntelliPro VS Pump (Before 2019) Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (3)

V-Clamp

Part # C19-37AZ

Call for availability

Clamp, Knob

Part # WC36-22Z

Call for availability

Sealplate.

Part # C103-194P

Call for availability

3 / 8-16 x 1 in. HX HD SS

Part # U30-74SSZ

Call for availability

Diffuser O-Ring

Part # U9-374Z

Call for availability

O-Ring 6.90 O. D 6.35 I. D

Part # 1440Z

Call for availability

Base

Part # C4-78P

Call for availability

U11- Adaptor Union 2 in. Slip

Part # 196PSZ

Call for availability

U11- Collar Union 2 in.

Part # 200PSZ

Call for availability

Diffuser

Part # C1-271PZ

Call for availability

Shaft Seal, EPDM black 3

Part # 0101S

Call for availability

C105- Imp. Assy. Phase

Part # 238PLA

Call for availability

Slinger. Pump Shaft 1/16 in.

Part # 17351-0009

Call for availability

Trap Cover Assy. (Contains: Trap Cover, Trap Ring and Cover O- Ring)

Part # 0111S

Call for availability

Pump SVC (Trap Body, Basket, Drain Plugs and Trap Cover Assy.)

Part # 0110S

Call for availability

Trap Basket

Part # C8-58PZ

Call for availability

Drain Plug

Part # U78-920PZ

Call for availability

Cover Control Assy. Kit, Black (Contains: Cover Assy., Screws, and Spacer Caps)

Part # 401100Z

Call for availability

IntelliPro Variable Speed Drive Kit - Includes Drive and Control Cover Assy., Li

Part # 353252

Call for availability

Motor VFD 3.2KW PMSW, Black

Part # 357294S

Call for availability

Hardware/Gasket Kit (Contains: Screws, Spacer Caps, and Drive Gasket)

Part # 350612

Call for availability

Field Wiring Compartment Kit with gasket

Part # 353310

Call for availability

Screw 10-24 x 3-1/4 in PH MS 18-8 SS (qty 3)

Part # 350107Z

Call for availability

Power end IntelliPro Variable Speed (Contains items 5, 6, 7, 8,

Part # 070209

Call for availability

Pentair IntelliPro VS Pump (Before 2019) parts, matched to the diagram. Click any number on the exploded view to see the part, price and stock. Leaking pump? It is usually the shaft seal or an o-ring. Losing prime? Start with the lid o-ring. Not sure what you have? Call us or bring the part into any of our Phoenix, Scottsdale, Chandler or Las Vegas stores and we'll match it.
