Pentair IntelliChem Chemical Controller Replacement Parts

Pentair

Pentair IntelliChem Chemical Controller Replacement Parts

Fits models:IntelliChem

  • Genuine PentairOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros

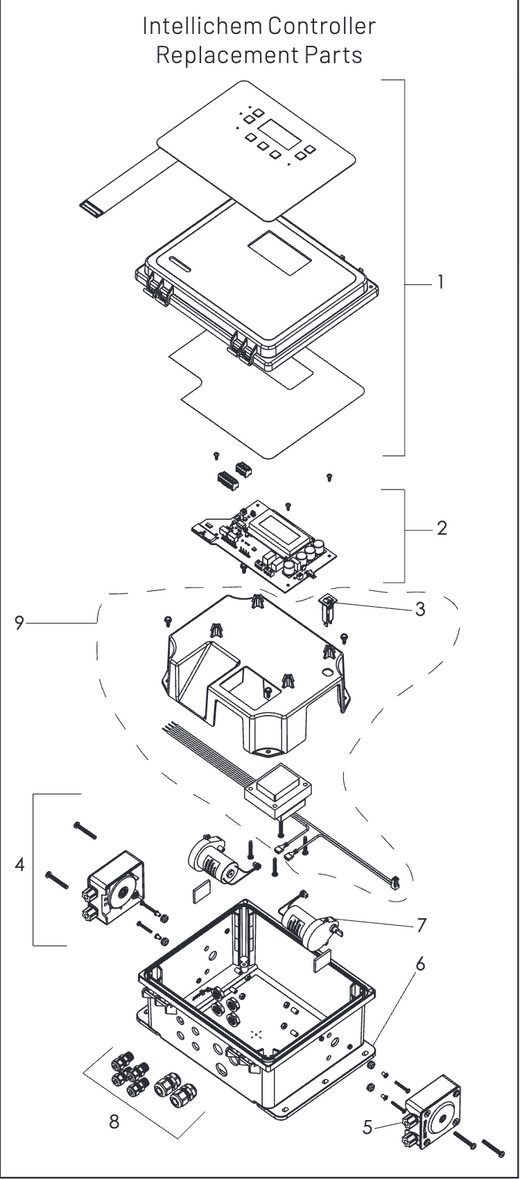

Exploded View

Tap a number to see the part, price and stock.

Pentair Pentair IntelliChem Chemical Controller Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (8)

Top Half (Lid with Overlay & Wiring Diagram)

Part # 521465Z

Call for availability

Controller PCBA

Part # 521319Z

Call for availability

Circuit Breaker

Part # 8520031Z

Call for availability

Transformer with Mounting Plate

Part # 521335Z

Call for availability

pH Sensor

Call for availability

ORP Sensor

Part # 522187

$164.99$189.99In Stock

Flow Cell with Flow Switch

Part # 754000310

Call for availability

Cable for pH Sensor, 10 ft

Part # 744000280

Call for availability

Cable for ORP Sensor, 10 ft

Part # 744000350

Call for availability

O-Ring for Flow Jar

Part # 754000350

Call for availability

Jar for Flow Cell

Part # 754000340

Call for availability

Repair Kit for Tank Mounted Pump

Part # 522386

Call for availability

Injection Fitting Kit (Ball, Spring, Saddle Clamp)

Part # 521895

Call for availability

Container Lid (Acid or Chlorine)

Part # 521505 / 521506

Call for availability

O-Ring for Container Lid (5-Pack)

Part # 521507

Call for availability

Suction Fitting, Black

Part # 521508

Call for availability

Vent Fitting, Grey

Part # 521509

Call for availability

Motor Driver Tank Pump PCBA Upgrade Kit

Part # 522478Z

Call for availability

Acid Tank with Tank Mounted Pump

Part # 522472

Call for availability

1/4" Black Tubing for Chemical Injection, 100 ft

Part # 522446

Call for availability

Pentair IntelliChem Chemical Controller parts, matched to the diagram. Click any number on the exploded view to see the part, price and stock. The controller, flow cell and chemical tank each have their own view. Use the tabs above the diagram to switch between them. Sensors reading off or a flow alarm? Start with the sensors (F1, F2) and flow switch (F5). Not sure what you have? Call us or bring the part into any of our Phoenix, Scottsdale, Chandler or Las Vegas stores and we'll match it.
