Pentair C & CC Series Centrifugal Pump (3 HP) Replacement Parts

Pentair

Pentair C & CC Series Centrifugal Pump (3 HP) Replacement Parts

Fits models:C/CC Series 3 HP

  • Genuine PentairOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros

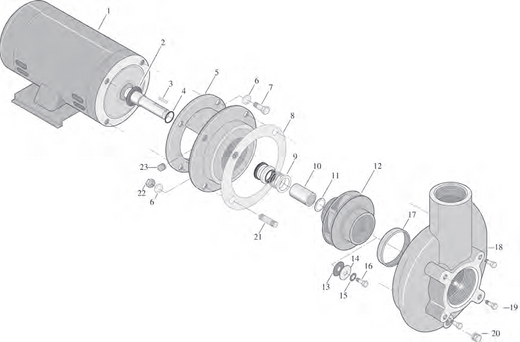

Exploded View

Tap a number to see the part, price and stock.

Pentair Pentair C & CC Series Centrifugal Pump (3 HP) Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (0)

Motor 230V/60H/1 Ph.

Part # C218-177 / C218-178 / C218-179 / C218-191

Call for availability

Key, Impeller

Part # U65-42A

Call for availability

O-Ring

Part # U9-265

Call for availability

Part

Part # C2-81 / C2-81D

Call for availability

Lockwasher, 3/8 in.

Part # U43-12ZP

Call for availability

Capscrew, 3/8-16 x 7/8 in.

Part # U30-73ZP

Call for availability

Gasket

Part # C20-77

Call for availability

U109- Shaft Seal (Replaces U109-220, 9 effective 8/00)

Part # 433SS

Call for availability

Shaft Sleeve

Part # C23-58

Call for availability

Gasket, Sleeve

Part # C20-101

Call for availability

C105-

Part # 224DF

Call for availability

Gasket, Impeller

Part # C20-100

Call for availability

Washer, Impeller

Part # C43-45SS

Call for availability

Washer, Stat-O-Seal

Part # C43-46

Call for availability

Screw, Impeller 3/8-16 x 3/4 in.

Part # U30-72SS

Call for availability

Wear Ring Only

Part # C23-40

Call for availability

(Models CMH-136, CMH3-136,

Part # C101-167D

Call for availability

U78- Pipe Plug, 1/4 in. NPT, Hex Head

Part # 941ZPV

Call for availability

Stud, 3/8-16 x 1/16 in.

Part # U30-22SS

Call for availability

CCHH

Part # U36-38ZP

Call for availability

Pipe Plug, 1/4 in. NPT

Part # U78-57SSS

Call for availability

Pentair C & CC Series Centrifugal Pump (3 HP) parts, matched to the diagram. Click any number on the exploded view to see the part, price and stock. Leaking pump? It is usually the shaft seal or an o-ring. Losing prime? Start with the lid o-ring. Not sure what you have? Call us or bring the part into any of our Phoenix, Scottsdale, Chandler or Las Vegas stores and we'll match it.
