Hayward TriStar XL VS Pump (HCP3020VSPX1) Replacement Parts

Hayward

Hayward TriStar XL VS Pump (HCP3020VSPX1) Replacement Parts

Fits models:HCP3020VSPX1HCXP3020Z1VSPE (Power End)

  • Genuine HaywardOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros
Owner's Manual (PDF)

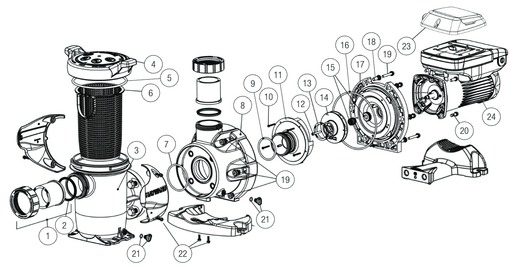

Exploded View

Tap a number to see the part, price and stock.

Hayward Hayward TriStar XL VS Pump (HCP3020VSPX1) Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (5)

Union Connector Kit (Includes 2 Nuts, Connectors and Gaskets)

Part # HCXP3000UNKIT

Call for availability

Union Gasket

Part # HCXP3000UG

Call for availability

Strainer Housing with Drain Plug

Part # HCXP3000H

Call for availability

Strainer Cover Kit (Includes Strainer Cover, Lock Ring and O-Ring)

Part # HCXP3000DLS

Call for availability

Strainer Basket

Part # HCXP3000M

Call for availability

Strainer Housing Flange O-Ring

Part # HCXP343V70

Call for availability

Pump Housing with Drain Plug

Part # HCXP3000A

Call for availability

Diffuser O-Ring

Part # HCXP338V60

Call for availability

Diffuser Screws (5 Pack)

Part # SPX3200Z8

Call for availability

Diffuser

Part # HCXP3000B

Call for availability

Impeller Screw

Part # SPX3200Z1

Call for availability

Impeller Ring

Part # HCXP3000R

Call for availability

Impeller with Impeller Screw

Part # HCXP3020C

Call for availability

Pump Housing O-Ring

Part # HCXP369V70

Call for availability

Seal Plate

Part # HCXP3000E

Call for availability

Housing Bolt

Part # SPX3200Z3

Call for availability

Motor Bolt (4 Pack)

Part # SPX3200Z5PAK4

Call for availability

Base Screws (2 Pack)

Part # SPX1600Z52

Call for availability

Display Terminal Assembly

Part # VSXDISPLAYX1

Call for availability

Power End Assembly (Includes #10-18, 2 ea. #19-20, #21, #27 and Motor Assy)

Part # HCXP3020Z1VSPE

Call for availability

Communication Cable Kit

Part # SPX3200DRCC

Call for availability

Interactive exploded-view parts diagram for the Hayward TriStar XL VS Pump (HCP3020VSPX1). Click any numbered part to see the part number, price and stock, or call us and we will find it for you.
