Hayward TracVac Replacement Parts

Fits models:W3HSCTRACCU

  • Genuine HaywardOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros

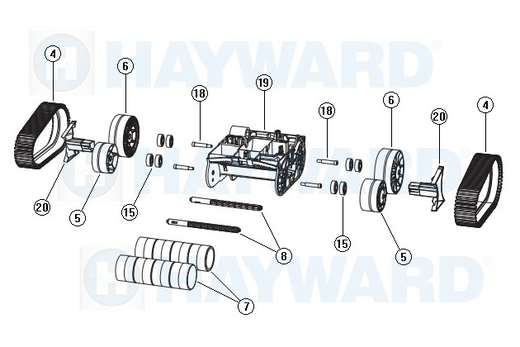

Exploded View

Tap a number to see the part, price and stock.

Hayward Hayward TracVac Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (1)

Top Cover Kit (Top Cover including Handle and Balancing Weig

Part # HSXTV100

Call for availability

Turbine Cover Swivel Kit (Turbine Cover/Swivel)

Part # HSXTV101

Call for availability

Track Kit (Set of 2)

Part # HSXTV103

Call for availability

Front Small Wheel Kit - Includes bearings and mushroom inser

Part # HSXTV104

Call for availability

Rear Large Wheel Kit - Includes bearings and mushroom insert

Part # HSXTV105

Call for availability

Roller Kit (Set of 4 rollers)

Part # HSXTV106

Call for availability

Roller Bar Kit (Set of 2)

Part # HSXTV107

Call for availability

Left Drive Kit (Long Drive Shaft and Bearing Housing)

Part # HSXTV108

Call for availability

Right Drive Kit (Short Drive Shaft and 2 bearings)

Part # HSXTV109

Call for availability

Cam Kit (Cam and 1 Reduction Gear)

Part # HSXTV110

Call for availability

Cam Reduction Gear Kit (5 Reduction Gears and SS Shaft)

Part # HSXTV111

Call for availability

Turbine Kit (Just the Turbine)

Part # HSXTV112

Call for availability

Drive gear Kit (3x Drive Side Gears)

Part # HSXTV113

Call for availability

Bearing Kit (Set of 8)

Part # HSXTV114

Call for availability

SS Shaft Kit (5x)

Part # HSXTV115

Call for availability

SS Screw Kit (6x Internal SS Shaft Screws)

Part # HSXTV125

Call for availability

Wheel Screw Kit (4x SS Screws for the Wheels)

Part # HSXTV117

Call for availability

Chassis Kit (Chassis with Balancing Weights and Latch Spring

Part # HSXTV118

Call for availability

Side Covers (2x), Left-Right

Part # HSXTV119

Call for availability

Accessory Kit

Part # HSXTV120

Call for availability

Float Kit (2 floats)

Part # HSXTV121

Call for availability

Hayward TracVac suction-side pool cleaner parts, matched to the official Hayward parts diagram (2 views). Pick a view, then click any number to see the part, price and stock. Fits models W3HSCTRACCU. Not sure what you need? Call us or bring the part into any of our stores and we'll match it.
