Hayward SwimClear C150S Replacement Parts

Fits models:C150SW3C150S

  • Genuine HaywardOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros
Owner's Manual (PDF)

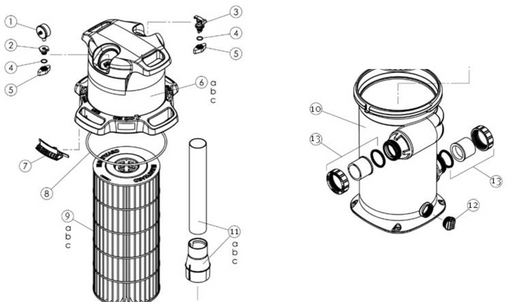

Exploded View

Tap a number to see the part, price and stock.

Hayward Hayward SwimClear C150S Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (6)

Pressure Gauge

Part # ECX2712B1

$25.94In Stock

Threaded Adapter for Pressure Gauge

Part # CCX1000L

Call for availability

O-Ring for Gauge Adapter & Air Relief (set of 2)

Part # CXGAR1001PAK2

Call for availability

Adapter Nut (set of 2)

Part # CCX1000N

Call for availability

Filter Head Assembly (C150S)

Part # CX150B

Call for availability

Latch for Lock Ring

Part # CXLRL1001

Call for availability

Filter Body Assembly

Part # CXFBA1001

Call for availability

Filter Diffuser Assembly (C150S)

Part # CXFDA150

Call for availability

Union Connector 1.5" Socket (optional)

Part # SPX1500JS

Call for availability

Union Connector 1.5" NPTF (optional)

Part # SPX1500JT

Call for availability

Hayward SwimClear C150S (150 sq ft) single-element cartridge filter parts, matched to the diagram. Click any number on the exploded view to see the part, price and stock. The filter head (#6), cartridge (#9) and diffuser (#11) are size-specific, and these fit the C150S. Leaking where the head meets the tank? Replace the filter head O-ring (#8). Not sure what you have? Call us or bring the part into any of our stores and we'll match it.
