Hayward Super Pump VS Replacement Parts

Hayward

Hayward Super Pump VS Replacement Parts

Fits models:SP2670020VSPX1W3SP2603VSPX1SPX2603Z1VSPE (Power End)

  • Genuine HaywardOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros
Owner's Manual (PDF) Shop the complete pump

Exploded View

Tap a number to see the part, price and stock.

Hayward Hayward Super Pump VS Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (13)

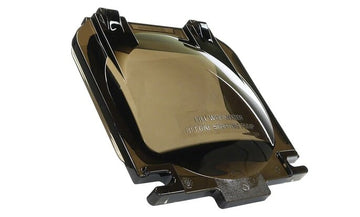

Strainer Cover

Part # SPX1600D

$62.99$69.99In Stock

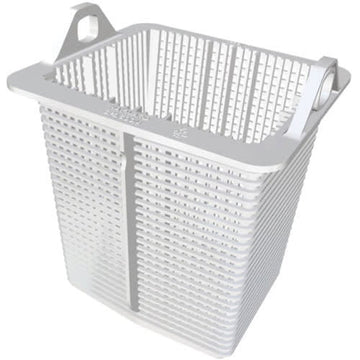

Basket

Part # SPX1600M

$19.94$29.99In Stock

Diffuser Gasket

Part # SPX1600R

$9.49$14.99In Stock

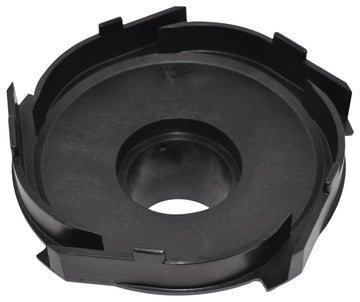

Diffuser

Part # SPX2600B

$37.99$49.99In Stock

Impeller

Part # SPX2610C

$32.94$49.99In Stock

Shaft Seal Assembly (Viton)

Part # SPX1600Z2VIT

Call for availability

Housing Gasket

Part # SPX1600T

$13.99$19.99In Stock

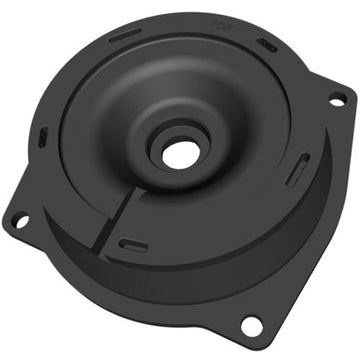

Seal Plate

Part # SPX2600E5

$41.94$59.99In Stock

Motor Cap Screws (Set of 4)

Part # SPX0125Z44

Call for availability

Housing Cap Screw

Part # SPX1600Z4

Call for availability

Mounting Foot Screws (Set of 2)

Part # SPX1600Z52

Call for availability

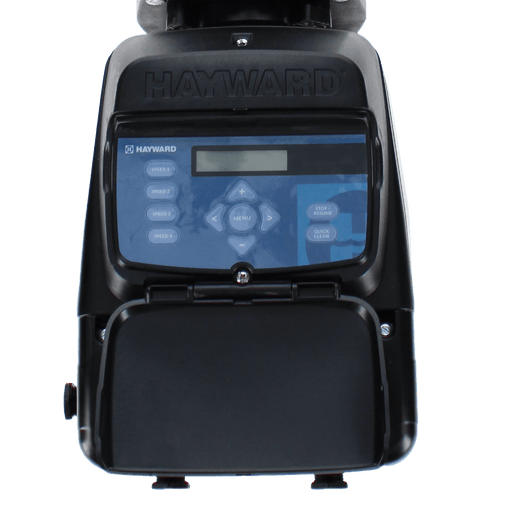

Display Terminal Assembly

Part # VSXDISPLAYX1

Call for availability

Power End Assembly (Includes #7-14, Motor and Drive)

Part # SPX2603Z1VSPE

Call for availability

Communication Cable Kit

Part # SPX3200DRCC

Call for availability

Interactive exploded-view parts diagram for the Hayward Super Pump VS. Click any numbered part to see the part number, price and stock, or call us and we will find it for you.
