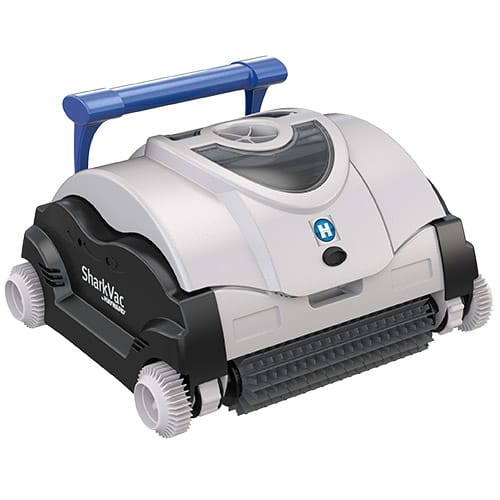

Hayward SharkVac Replacement Parts

Hayward

Hayward SharkVac Replacement Parts

Fits models:W3RC9742CUBYRC9742CUBYRC9740CUBW3RC9740CUB

  • Genuine HaywardOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros
Shop the complete cleaner

Exploded View

Tap a number to see the part, price and stock.

Hayward Hayward SharkVac Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (5)

Window, Dome Clear SV

Part # RCX97421

Call for availability

Spring, Flat SV/EV

Part # RCX341149

Call for availability

Button SV

Part # RCX97433

Call for availability

Bushing, Dome, SV

Part # RCX97423

Call for availability

Door, Filter

Part # RCX97417 / RCX97417SPAK2

Call for availability

Flap, Drain Small SV

Part # RCX97405

Call for availability

Flap, Drain Large SV

Part # RCX97407

Call for availability

Overmolded Wheel Assembly, SV

Part # RCX97508GR

Call for availability

Roller Shaft Bushing Kit (set of 2)

Part # RCX97435PAK2

Call for availability

Roller Bushing Kit (set of 2)

Part # RCX97506PAK2

Call for availability

Wheel-Drive Belt, SharkVAC

Part # RCX97505GR

Call for availability

Roller End SV

Part # RCX97441

Call for availability

Roller Shaft Bushing Kit (set of 2)

Part # RCX97435PAK2

Call for availability

Roller Wheel Shaft (set of 2)

Part # RCX97507PAK2

Call for availability

Base SV, Black

Part # RCX341142-236

Call for availability

Handle Assembly SV, Blue

Part # RCX97425-234

Call for availability

Spring, Handle

Part # RCX97427

Call for availability

Motor Assembly SV/EV

Part # RCX97400

Call for availability

Tube, Vent

Part # RCX97455

Call for availability

Panel, Side SV, Black

Part # RCX97403-236

Call for availability

Screw M5X35MM PT

Part # RCX97461

Call for availability

Power Supply SV

Part # RCX97453

Call for availability

Shaft, Hinge S.S. SV/EV

Part # RCX97429

Call for availability

Tube Wheel, Black, SharkVac

Part # RCX97520ABK

Call for availability

Belt-Drive Track, SharkVAC

Part # RCX97501GR

Call for availability

Impeller

Part # RCX11000

$18.99$29.99In Stock

Drive Bearing Assembly, SharkVAC®

Part # RCX97502GR

Call for availability

Pulley Bearing Kit (set of 2)

Part # RCX26000PAK2

Call for availability

Motor Cord Seal Kit

Part # RCX59004KIT

Call for availability

Screw M5 X 20 Pan TORX HD T-20

Part # RCX12011

Call for availability

Drive Wheel Kit (set of 2)

Part # RCX97509PAK2

Call for availability

Dome Assembly, SV Gray (Includes 1,2,3,4,5)

Part # RCX97418-237

Call for availability

Filter Bucket Assembly SV/EV (6, 7, 8, 9, 10)

Part # RCX97414

Call for availability

Tube, Wheel Assembly SV

Part # RCX97410

Call for availability

Power Supply Switch 16A

Part # RCX31012

Call for availability

Power Supply Switch Membrane Cover

Part # RCX31012A

Call for availability

Power Supply Circuit Breaker 3A

Part # RCX31013A

Call for availability

Power Supply Output Connector

Part # RCX31018

Call for availability

Connector Socket Molex

Part # RCX59006

Call for availability

Hayward SharkVac robotic pool cleaner parts, matched to the official Hayward parts diagram (5 views). Pick a view, then click any number to see the part, price and stock. Fits models W3RC9742CUBY, RC9742CUBY, RC9740CUB, W3RC9740CUB. Not sure what you need? Call us or bring the part into any of our stores and we'll match it.
