Hayward ProGrid DE7220 Replacement Parts

Hayward

Hayward ProGrid DE7220 Replacement Parts

Fits models:DE7220W3DE7220

  • Genuine HaywardOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros
Owner's Manual (PDF)

Exploded View

Tap a number to see the part, price and stock.

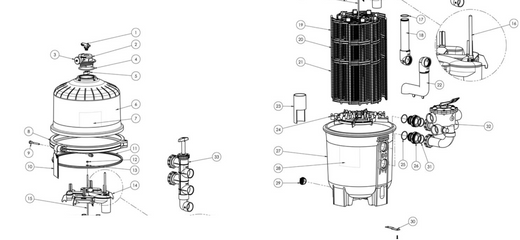

Hayward Hayward ProGrid DE7220 Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (17)

Pressure Gauge

Part # ECX2712B1

$25.94In Stock

Manual Air Relief Nut

Part # CCX1000N

Call for availability

Filter Head w/ Clamp (DE7220)

Part # DEX7220BTC

Call for availability

Label Pack

Part # DEX2420LA6PAK

Call for availability

Clamp Bolt & Nut

Part # DEX2421J2

$36.99$49.99In Stock

Label Pack (hang tag)

Part # DEX2420LA6PAK

Call for availability

Retainer Nut 5/16"-18

Part # ECX176865

Call for availability

Washer (2 req.)

Part # ECX1109

Call for availability

Retainer Rod (DE7220)

Part # DEX7200R

Call for availability

Outlet Elbow (DE7220)

Part # DEX7220EA

Call for availability

Filter Element Cluster Assembly (complete grid set, DE7220)

Part # DEX7200DC

Call for availability

Filter Element / Grid (DE7220, 7 req.)

Part # DEX7200DA

Call for availability

Filter Element Short (DE7220, 1 req.)

Part # DEX7200DS

Call for availability

Inlet Diffuser

Part # DEX2420GA

Call for availability

Label Pack

Part # DEX2420LA6PAK

Call for availability

Strap Kit (optional)

Part # DEX2420DCKIT

Call for availability

Slide / Push-Pull Valve

Part # SP0410X5025 / SP0425

Call for availability

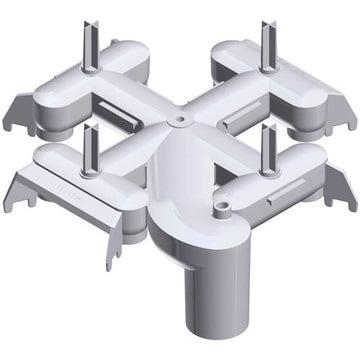

Hayward ProGrid DE7220 (72 sq ft) DE filter parts, matched to the diagram. Click any number on the exploded view to see the part, price and stock. The filter head (#6), retainer rod (#15), outlet elbow (#18) and grids (#19-21) are size-specific, and these fit the DE7220. DE going back into the pool? Check the grids (#20, #21) and manifold (#14). Not sure what you have? Call us or bring the part into any of our stores and we'll match it.
