Hayward ProGrid DE2420 Replacement Parts

Hayward

Hayward ProGrid DE2420 Replacement Parts

Fits models:DE2420W3DE2420

  • Genuine HaywardOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros
Owner's Manual (PDF)

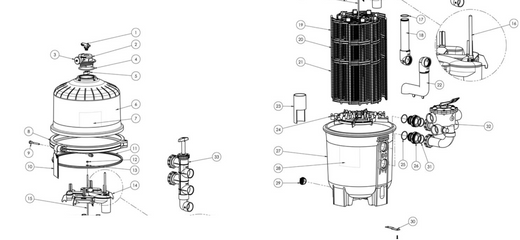

Exploded View

Tap a number to see the part, price and stock.

Hayward Hayward ProGrid DE2420 Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (17)

Pressure Gauge

Part # ECX2712B1

$25.94In Stock

Manual Air Relief Nut

Part # CCX1000N

Call for availability

Filter Head w/ Clamp (DE2420)

Part # DEX2420BTC

Call for availability

Label Pack

Part # DEX2420LA6PAK

Call for availability

Clamp Bolt & Nut

Part # DEX2421J2

$36.99$49.99In Stock

Label Pack (hang tag)

Part # DEX2420LA6PAK

Call for availability

Retainer Nut 5/16"-18

Part # ECX176865

Call for availability

Washer (2 req.)

Part # ECX1109

Call for availability

Retainer Rod (DE2420)

Part # DEX2400R

Call for availability

Outlet Elbow (DE2420)

Part # DEX2420EA

Call for availability

Filter Element Cluster Assembly (complete grid set, DE2420)

Part # DEX2420DC

Call for availability

Filter Element / Grid (DE2420, 7 req.)

Part # DEX2400DA

Call for availability

Filter Element Short (DE2420, 1 req.)

Part # DEX2400DS

Call for availability

Inlet Diffuser

Part # DEX2420GA

Call for availability

Element Spacer (DE2420 only)

Part # DEX2420T

Call for availability

Label Pack

Part # DEX2420LA6PAK

Call for availability

Strap Kit (optional)

Part # DEX2420DCKIT

Call for availability

Slide / Push-Pull Valve

Part # SP0410X5025 / SP0425

Call for availability

Hayward ProGrid DE2420 (24 sq ft) DE filter parts, matched to the diagram. Click any number on the exploded view to see the part, price and stock. The filter head (#6), retainer rod (#15), outlet elbow (#18) and grids (#19-21) are size-specific, and these fit the DE2420. DE going back into the pool? Check the grids (#20, #21) and manifold (#14). Not sure what you have? Call us or bring the part into any of our stores and we'll match it.
