Hayward PowerFlo LX Pump Replacement Parts

Hayward

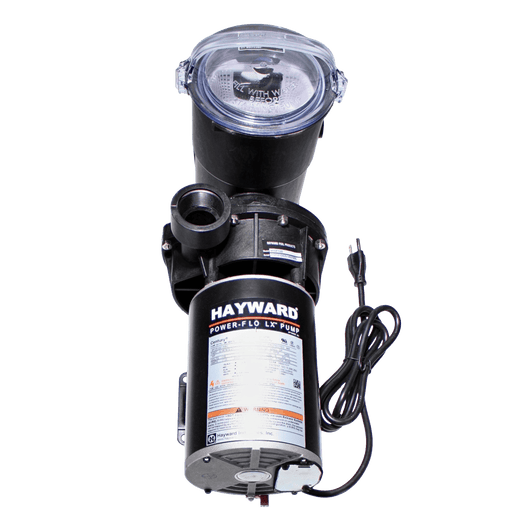

Hayward PowerFlo LX Pump Replacement Parts

Fits models:SP1580SP1580X15SW1585X20SW1585X25EP1550LX

  • Genuine HaywardOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros
Owner's Manual (PDF) Shop the complete pump

Exploded View

Tap a number to see the part, price and stock.

Hayward Hayward PowerFlo LX Pump Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (8)

Housing Bolt, No. 10-24 Hex Head (8 req.)

Part # SPX1500N2

Call for availability

Housing Cover

Part # SPX1580BP

Call for availability

Housing O-Ring

Part # SPX1580Z1

Call for availability

Housing Gasket

Part # SPX1500H

Call for availability

Seal Assembly

Part # SPX1500KA

$34.99$42.99In Stock

Impeller (refer to the part number on your original impeller)

Part # Call for part number

Call for availability

Pump Housing

Part # SPX1580AAP

$89.99$109.99In Stock

Housing Nut, No. 10-24 Hex Head (8 req.)

Part # SPX1500Y2

Call for availability

Motor (by pump model)

Part # SPX1510Z1XE / SPX1515Z1E / SPX1520Z1ESC / SPX1524Z1ESC

Call for availability

Check Valve Assembly (Optional)

Part # SPX1500RA

Call for availability

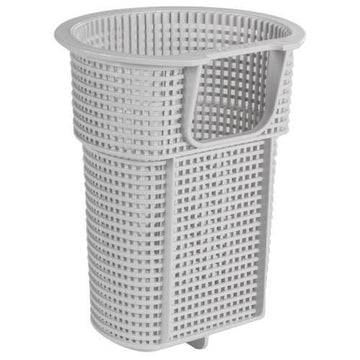

Strainer Basket

Part # SPX1500LX

$16.94$19.99In Stock

Drain Plug with Gasket

Part # SPX1700FG

Call for availability

C-Clip

Part # SPX1515C

Call for availability

6' Cord Set (14/3)

Part # SPX1250WA

Call for availability

Interactive exploded-view parts diagram for the Hayward PowerFlo LX Pump (SP1580, SP1580X15, SW1585X20, SW1585X25, EP1550LX). Click any numbered part to see the part number, price and stock, or call us and we will find it for you.
