Hayward PoolCleaner R130 Replacement Parts

Hayward

Hayward PoolCleaner R130 Replacement Parts

Fits models:W3RCH431CU

  • Genuine HaywardOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros

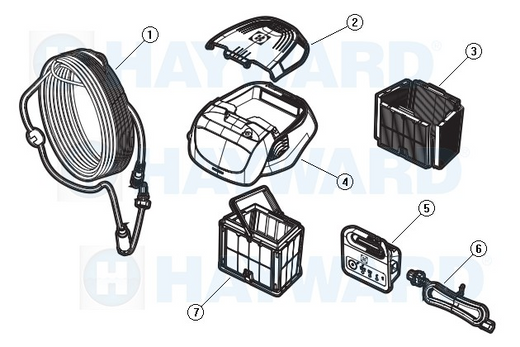

Exploded View

Tap a number to see the part, price and stock.

Hayward Hayward PoolCleaner R130 Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (0)

Cable, W-Swivel, 2W 60 ft/18M

Part # RCX99958907-DIY

Call for availability

Filter Cover, R130, White-Blue

Part # RCX99952461

Call for availability

Ultra-Fine Filters (Set of 4)

Part # RCX9991467

Call for availability

Outer Casing R130 Complete

Part # RCX99952460-DIY

Call for availability

PS Advanced, 115V US WT

Part # RCX99956035US

Call for availability

USA Switching PS Cord

Part # RCX58984402LF

Call for availability

Fine Filter Basket Assembly, S2

Part # RCX9991457

Call for availability

Gear for Drive Motor

Part # RCX9983142

Call for availability

Water Adjuster Tube, S2

Part # RCX9991735

Call for availability

Manifold Assembly, S2

Part # RCX9991730

Call for availability

Motor Unit, S2 LED, EX

Part # RCX9995388-EX

Call for availability

Brush PVC, S2, Dark Gray

Part # RCX99955388

Call for availability

Bearing, for Brush

Part # RCX9991602

Call for availability

Side Panel S2, Blue 2192C

Part # RCXM96200053

Call for availability

Wheel Disk S1/S2, Gray 11C

Part # RCXM96200031

Call for availability

Track, S1/S2, C. Gray 11C

Part # RCX99831524

Call for availability

Active Brush S2, Dark Gray

Part # RCX99917007

Call for availability

Wheel Bushing, S1/S2, White

Part # RCX9983114

Call for availability

Front Wheel, Gray GR130

Part # RCX9983410

Call for availability

Front Wheels/Bushings Kit R130

Part # RCX9991627

Call for availability

Screw KA50X16 WN1412

Part # RCX3379616-A

Call for availability

Water Release Flap

Part # RCX9983102

Call for availability

Impeller and Screw

Part # RCX9995266

Call for availability

Hayward PoolCleaner R130 robotic pool cleaner parts, matched to the official Hayward parts diagram (2 views). Pick a view, then click any number to see the part, price and stock. Fits models W3RCH431CU. Not sure what you need? Call us or bring the part into any of our stores and we'll match it.
