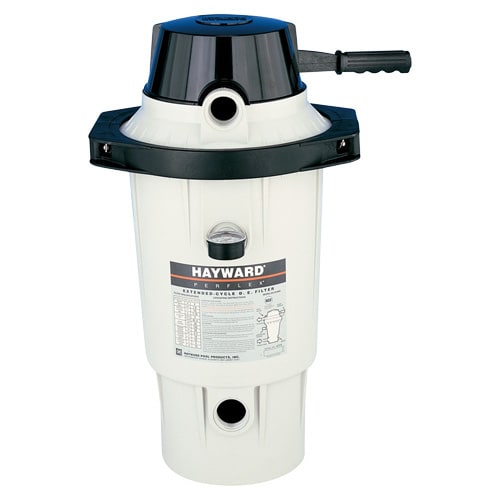

Hayward Perflex EC40 Replacement Parts

Fits models:EC40ACW3EC40ACEC40C90EC40C92SW3EC40C92S

  • Genuine HaywardOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros
Owner's Manual (PDF) Shop the complete filter

Exploded View

Tap a number to see the part, price and stock.

Hayward Hayward Perflex EC40 Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (11)

Bump Mechanism Cover

Part # ECX10066

Call for availability

Filter Body w/ Flow Diffuser

Part # ECX4034

Call for availability

Hardware Kit for Clamp Assembly

Part # ECX4000CHK

Call for availability

Shaft Kit

Part # ECX1014A

Call for availability

Bump Handle Grip

Part # ECX1037B

Call for availability

Bump Handle Screw Kit

Part # ECX4236A

Call for availability

Bump Shaft, 1/2" (EC40AC)

Part # ECX5000F

Call for availability

Tube Sheet, Top/Bottom (2 req.)

Part # ECX1004

Call for availability

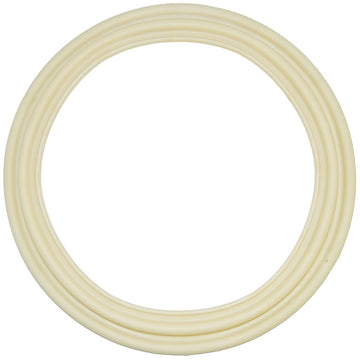

Diaphragm Gasket

Part # ECX5000G

$69.99$79.99In Stock

Flow Diffuser w/ Check Valve

Part # ECX1256

Call for availability

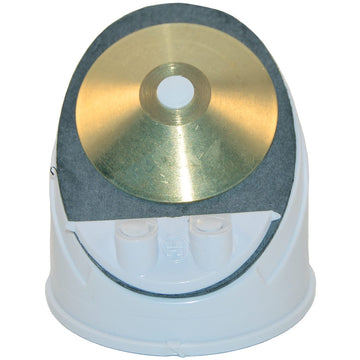

Check Valve

Part # ECX4077B1

$21.94In Stock

Flow Controller

Part # SPX1055

Call for availability

Flex-Tube Nest (includes #6, 9, 10, 11, 12 & 13)

Part # ECX4035

Call for availability

O-Ring

Part # SPX142576

Call for availability

Power-Flo Pump (EC40C90 systems)

Part # Call for part number

Call for availability

6 ft. Cord Set

Part # SPX1250WA

Call for availability

Pump Mounting Screw Set

Part # ECX1108A

Call for availability

Hayward Perflex EC40 extended cycle DE filter parts (EC40AC and EC40C90 series systems), matched to the diagram. Click any number on the exploded view to see the part, price and stock. Leaking at the head? Replace the diaphragm gasket (#11). High pressure after bumping? The flex-tubes (#12) need cleaning or replacing. Not sure what you have? Call us or bring the part into any of our stores and we'll match it.
