Hayward DEP80 Replacement Parts

Hayward

Hayward DEP80 Replacement Parts

Fits models:DEP80

  • Genuine HaywardOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros
Owner's Manual (PDF)

Exploded View

Tap a number to see the part, price and stock.

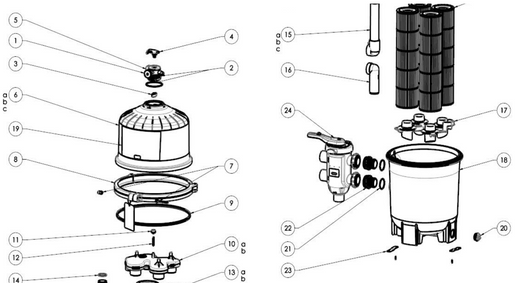

Hayward Hayward DEP80 Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (17)

Pressure Gauge

Part # ECX2712B1

$25.94In Stock

Air Relief Valve Nut

Part # CCX1000N

Call for availability

Clamp Bolt & Nut

Part # DEX2421J2

$36.99$49.99In Stock

Air Relief Tube

Part # CX2030Z3

Call for availability

Cartridge Element (DEP80, 4 req.)

Part # DEX200E / DEX200EPAK4

Call for availability

O-Ring

Part # DEX2400Z5

$9.94$13.99In Stock

Outlet Elbow Assembly (DEP80)

Part # DEX80EA

Call for availability

Inlet Elbow

Part # CX3020FB

$57.99$69.99In Stock

Bottom Seal Plate

Part # CX3030D

Call for availability

Lower Filter Body

Part # DEX2420ATC

$749.99$799.99In Stock

Label Pack (labels, hang tag, wire tie, manual)

Part # DEX60LA6PAK

Call for availability

Bulkhead O-Ring

Part # SX220Z2

$10.94$14.99In Stock

Bulkhead Fitting

Part # DEX2420F

$32.94$39.99In Stock

Strap Kit (optional)

Part # DEX2420DCKIT

Call for availability

Selecta-Flo Push-Pull Valve 2" SKT

Part # SP0425

Call for availability

Hayward DEP80 filter parts, matched to the diagram. Click any number on the exploded view to see the part, price and stock. The upper body (#6), top manifold (#10), cartridges (#13, 4 required) and outlet elbow (#15) are size-specific, and these fit the DEP80. Leaking at the tank seam? Replace the metal reinforced seal (#9). Not sure what you have? Call us or bring the part into any of our stores and we'll match it.
